水稻收割机
| 型 号 Model | 水稻收割机Rice combine 4LZ-7 | ||
| 外形尺寸（长×宽×高） Dimension (L×W×H) | mm | 5900×2640×2940 | |
| 最小使用质量（kg）Min. operating weight | kg | 3935 | |
| 履带轨距Track gauge of crawler | mm | 1250 | |
| 喂入量Feeding speed | kg/s | 7 | |
| 作业效率Productivity | hm²/h | 0.19～1.0 | |
| 作业速度 Working speed | km/h | 0.9～6.5 | |
| 最小离地间隙Mini clearance | mm | 340 | |
| 粮箱容积Grain tank | m³ | 1.6 | |
| 油箱容量 fuel tank capacity | L | 140 | |
| 割台Cutting | 割台宽度Cutting width | mm | 2400 |
| 割台搅龙型式Cutting table agitator type | / | 螺旋推运式Screw pusher type | |
| 拨禾轮型式Type of reel | / | 偏心弹齿式Eccentric toothed type | |
| 拨禾轮杆Reel lever lever | / | 5 | |
| 拨禾轮直径Pulling wheel diameter | mm | Φ900 | |
| 脱谷室Tuogu Room | 脱粒滚筒数量 Number of threshing drums | / | 1 |
| 主脱粒滚筒型式 Main threshing drum type | / | 纵向轴流杆齿式 Longitudinal axial flow rod tooth type | |
| 粒滚筒外形尺寸(外径×长度)Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2200 | |
| 凹板筛型式Concave plate sieve type | / | 栅格式Grid format | |
| 复脱方式Detoxification method | / | 板齿风叶式Plate-tooth blade type | |
| 发动机Engine | 型号Model | / | 110HP-GIII |
| 型式Type | / | 涡轮增压+机械喷射 Turbocharging+mechanical injection | |
| 气缸数Qty of cylinders | / | 4 | |
| 标定功率Rated power | HP/KW | 110HP/80.1kw | |
| 标定转速Rated speed | r/min | 2400 | |
| 单位作业量燃油消耗量 Fuel consumption per unit operation volume | kg/hm2 | ≤35 | |
| 卸粮系统 Unloading system | 卸粮高度Unloading height of grain | mm | 0.8-4000 |
| 卸粮方式Grain unloading mode | / | 360°多方位卸粮 360°Multi-directional grain unloading | |
| 橡胶履带Rubber Track | / | 550x90Px56 | |
| 底盘轮Chassis Wheels | / | 6+1 with scraper 底盘轮6+1 | |
| 变速箱Gearbox | / | 95 | |
| 无极变速HST | / | 日本神崎 KANZAKI 52cc | |
| 监控和视频Monitoring and Video | / | 是Yes | |
| USB充电USB Charges | / | 是Yes | |
| 割台液压阀Valve of Hydraulic on Header | / | 是Yes | |
| 工作区域记录器Working Area Recorder | / | 是Yes | |
| 报警系统Alarm system | / | 粮箱报警，冷却液报警，电池报警，发动机油报警，堵塞报警 Grain tank alarm, coolant alarm, battery alarm, engine oil alarm and blockage alarm | |
| 驾驶室Pilothouse | / | 豪华空调驾驶室Luxury air-conditioned cab | |

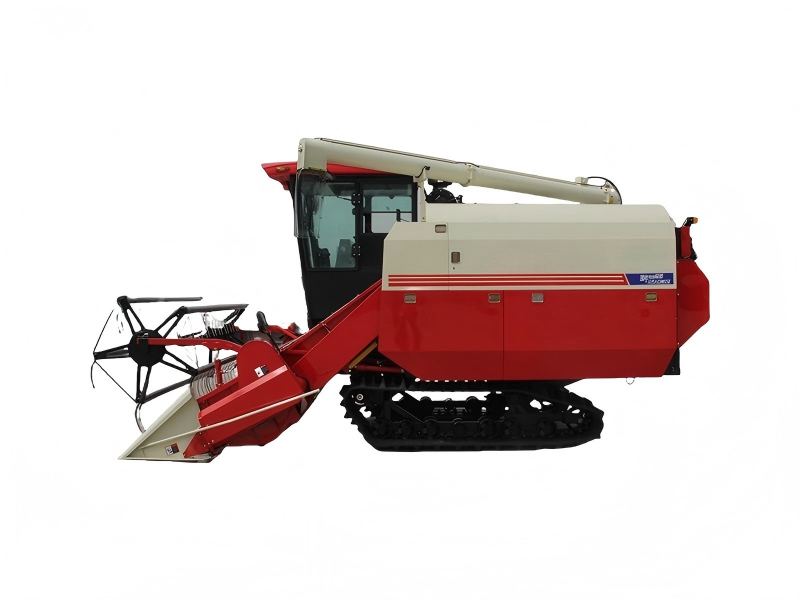

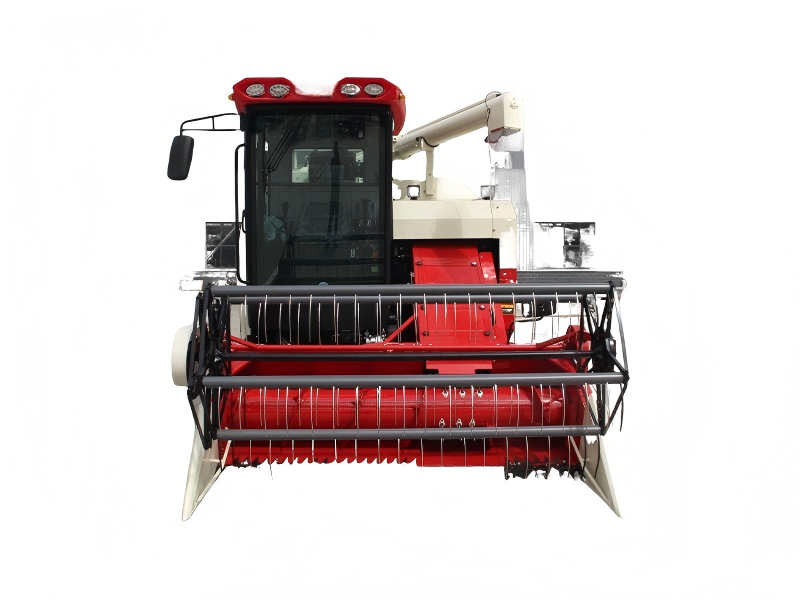

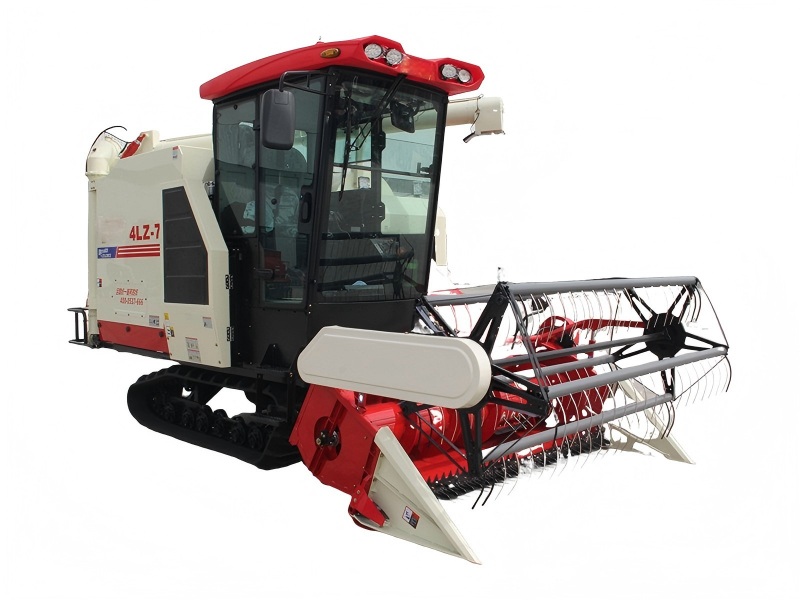

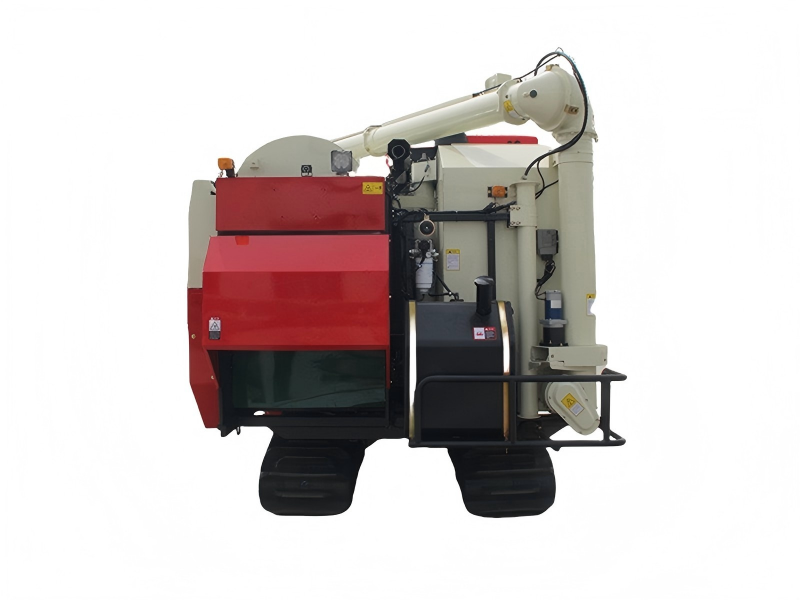

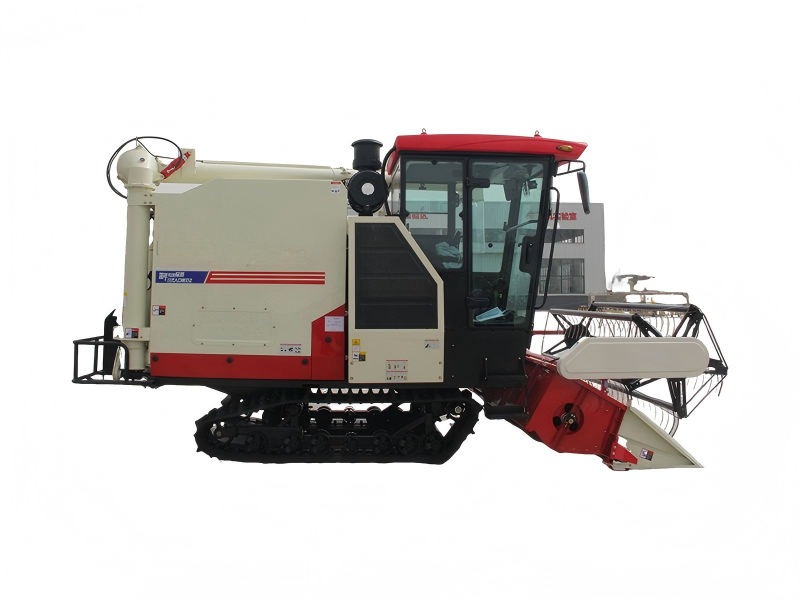

| 图像： Image: |    | ||
| 配置描述： Description of configuration: | 2025款，豪华空调驾驶室，2400割台，带USB接口，玉柴110马力国三，550宽56节履带，不带秸秆切碎器部装 Model 2025, luxury air conditioning cab, 2400 header, with USB interface, Yuchai 110HP G3, 550 wide 56 section crawler, without straw chopper subassembly | ||
| 产品特点 Product Features： | 1.选装板式分禾器及“鼠笼式”分禾器，作物适应性广，特别是倒伏作物，减少割台损失； 2.拨禾轮弹齿管加装防护罩，有效的防止缠草； 3.优化割台升降回转设计，匹配加长过桥，既解决了割台低割（收倒伏作物）问题，又解决了割台高点通过性问题；割台护刃器尖底点低于水平地面40mm，高点为距水平地面1000 mm； 4. 过桥喂入口优化设计，采用浮动轮，依喂入量自由调节，提升输送通过性； 5.脱谷室喂入口采用弧形加厚不锈钢板制作，提高了其刚性强度及耐磨性； 6. 匹配高效脱粒清选分离系统，脱粒滚筒长达2.2米，采用新式清选风机及可调角度鱼鳞清选筛，作物处理能力强，系统解决了脱粒喂入不畅及清选损失大的问题； 7. 高地隙底盘匹配，最小离地间隙可达340mm，提高防陷能力，可选配履带，提高了水田通过性和适应性； 8. 匹配名优马力国三发动机，动力强劲，作业效率高，油耗低； 9. 采用原装进口行走液压变速器，匹配95变速箱，速度快，转向灵活，操控性好； 10. 全新操纵面板，美观大方，操作舒适，更符合人机工程学；防水电器元件，使用寿命长，凹陷启动开关安装，避免意外碰撞熄火； 11. 选配两种秸秆后处理方式，地域适应性广； 12. 选装油菜、玉米，谷子收割装置，适应性强，实现一机多用。 1. Optional plate type divider and "squirrel cage" divider, wide crop adaptability, especially lodging crops, reduce header loss; 2. The elastic tooth tube of the wheel is equipped with a protective cover to effectively prevent grass entanglement; 3. Optimize the lifting and slewing design of the header and match the lengthened bridge, which not only solves the problem of low cutting (lodging crop) of the header, but also solves the problem of passability at the high point of the header; The tip of the header guard is 40 mm below the horizontal ground, and the high point is 1000 mm from the horizontal ground. 4. Optimized design of the feeding inlet of the bridge, using floating wheels, which can be adjusted freely according to the feeding amount to improve the conveying throughput; 5. The feeding inlet of the threshing room is made of arc-shaped thickened stainless steel plate, which improves its rigidity, strength and wear resistance; 6. Matched with high-efficiency threshing and cleaning separation system, the threshing drum is 2.2 meters long, and the new cleaning fan and adjustable angle fish scale cleaning screen are adopted, which has strong crop processing capacity, and the system solves the problems of poor threshing feeding and large cleaning loss; 7. High clearance chassis matching, the minimum ground clearance can reach 340mm, improve the anti-sinking ability, optional track, improve the passability and adaptability of paddy field; 8. Matching the famous horsepower national three engine, strong power, high operating efficiency and low fuel consumption; 9. Adopt original imported walking hydraulic transmission, matched with 95 gearbox, fast speed, flexible steering and good handling; 10. Brand new control panel, beautiful and generous, comfortable to operate, more in line with ergonomics; Waterproof electrical components, long service life, recessed start switch installation, to avoid accidental collision and flameout; 11. Choose two kinds of straw post-treatment methods, with wide regional adaptability; 12. Optional rapeseed, corn, millet harvesting device, strong adaptability, to achieve a multi-purpose machine. | ||
