4YZP-3FG
| 型 号 Model | 4YZP-3FG | ||
| 结构型式 Structural type | / | 轮式、摘穗、剥皮、秸秆还田 wheel type, ear picking, peeling, straw returning | |
| 外形尺寸（长×宽×高） Dimension (L×W×H) | mm | 7100×2000×3400 | |
| 整机质量Mass of complete machine | kg | 7380 | |
| 收割台 Header | 割台型式Header type | / | 卧式horizontal type |
| 工作行数（通道数）Number of operating lines (number of channels) | row | 3 | |
| 行距row pitch | mm | 600 | |
| 适应行距范围Available row distance： | mm | 550-750 | |
| 工作幅宽Working breadth | mm | 1900 | |
| 摘穗机构型式Type of ear picking mechanism | / | 摘穗板式 Ear picking plate | |
| 摘穗辊数量Number of ear picking rollers | 件 | 6 | |
| 升运器 lift conveyer | 果穗升运器布置位置Layout of ear elevator | / | 中置 Center placed |
| 果穗升运器结构型式Structural type of ear elevator | / | 链条刮板式 Chain scraper type | |
| 发动机 Engine | 型号Model | / | 200GIII |
| 型式Type | / | 4缸、直列、四冲程、高压共轨 four-cylinder, in-line, four-stroke, high-pressure common rail | |
| 气缸数Qty of cylinders | / | 4 | |
| 标定功率Rated power | HP/KW | 200HP/147KW | |
| 标定转速Rated speed | r/min | 2200 | |
| 剥皮机 Peeler | 剥皮机构型式Type of stripping mechanism | / | 高低辊、橡胶辊 High-low roller and rubber roller |
| 剥皮辊数量Number of stripping rollers | 个 | 16 | |
| 还田机 Field returning machine | 型式Type | / | 甩刀式 Swing blade type |
| 秸秆粉碎还田机构位置 Location of straw crushing and returning mechanism | / | 前后轮胎之间 Between front and rear tires | |
| 秸秆粉碎还田机构工作幅宽 Working Width of Straw Crushing and Returning Mechanism | mm | 1850 | |

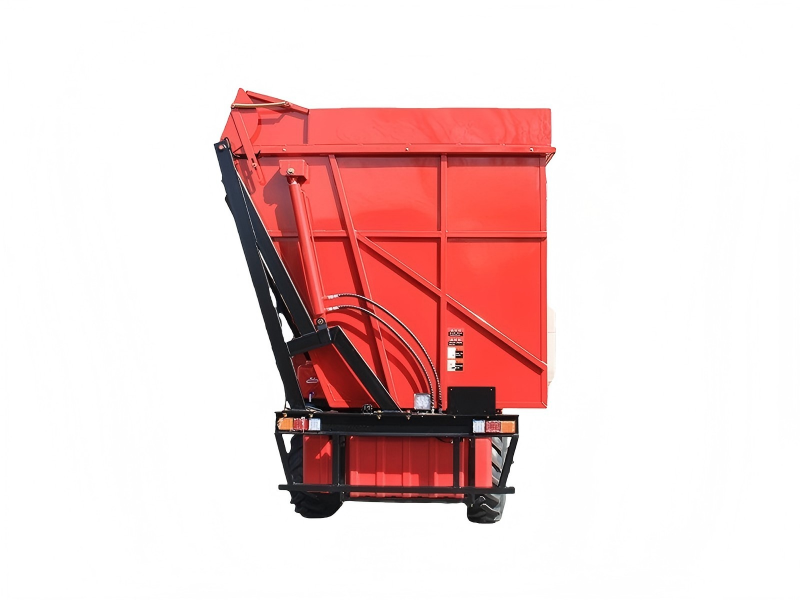

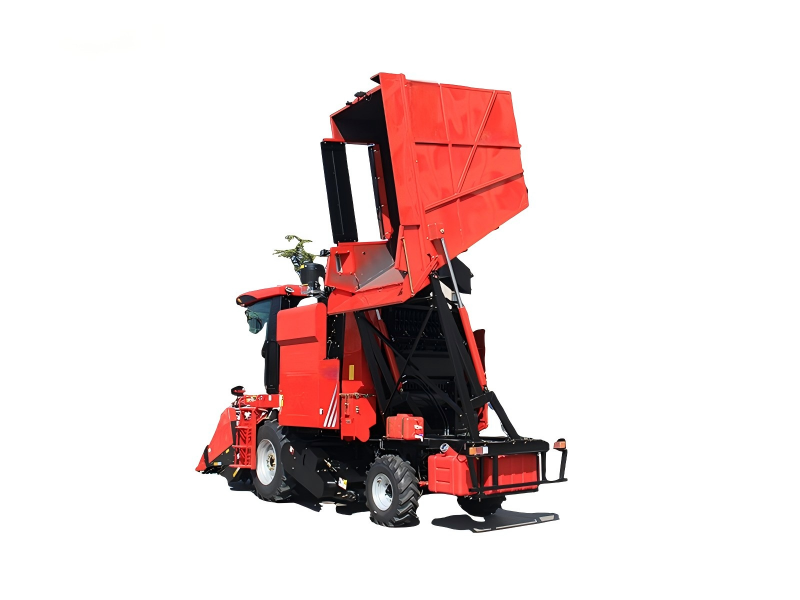

| 卸粮方式Grain unloading mode： | 液压侧翻式Hydraulic rollover type | ||
| 籽粒回收箱形式Grain recycling box form： | 抽拉式Pull type | ||
| 驾驶室型式Type of cab： | / | 豪华空调驾驶室 Luxury air-conditioned cab | |
| 变速机构型式： Type of transmission mechanism： | / | 机械变速箱+静液压无级变速 Mechanical transmission+hydrostatic stepless transmission | |
| 驱动型式Driving Type： | / | 两驱Two drive system | |
| 最小离地间隙Mini clearance： | mm | 285 | |
| 作业速度 Working speed： | km/h | 2-6 | |
| 驱动轮轮距Drive wheel track： | mm | 1635 | |
| 导向轮轮距Guide wheel track： | mm | 1430 | |
| 轴距wheel base： | mm | 2760 | |
| 驱动轮轮胎规格： Drive wheel tire specifications： | / | 15.5_80-24-16PR-R-1 | |
| 导向轮轮胎规格： Specification of guide wheel tire： | / | 10.0_75-15.3越野纹（12层级） Off road grain (12 levels) | |
| 作业效率Productivity： | hm²/h | 0.2～0.55 | |
| 粮箱容积Grain tank： | m³ | 2.3 | |
| 油箱容量 fuel tank capacity： | L | 220 | |

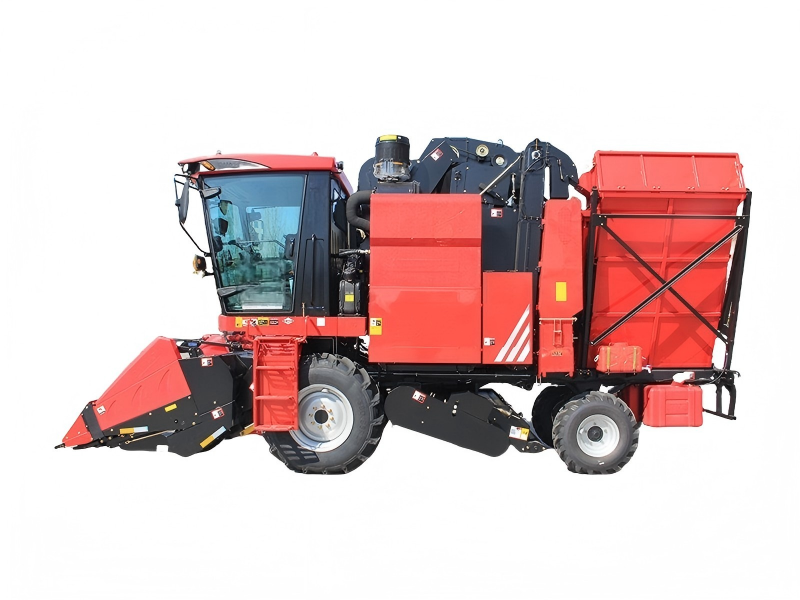

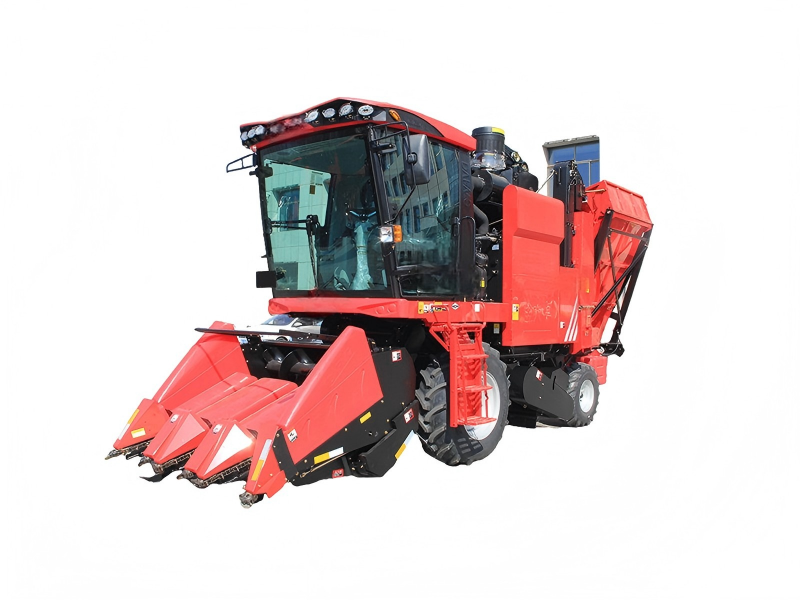

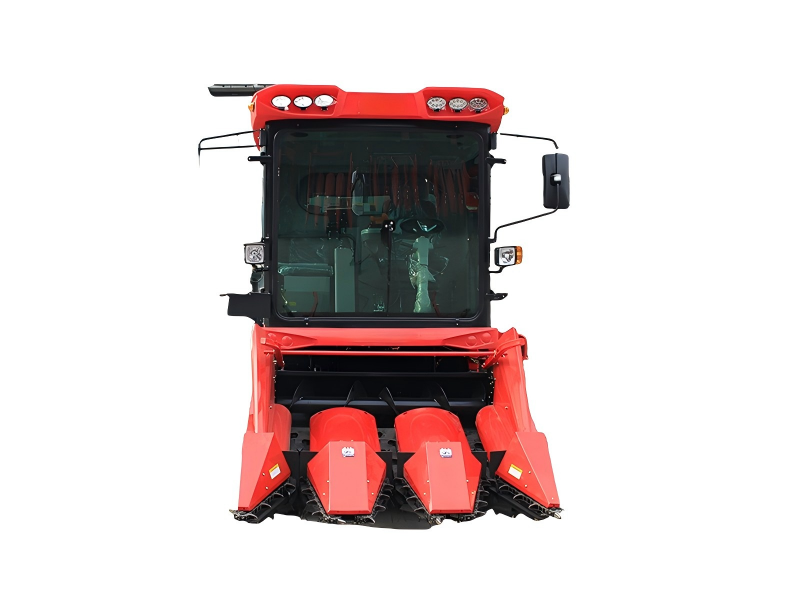

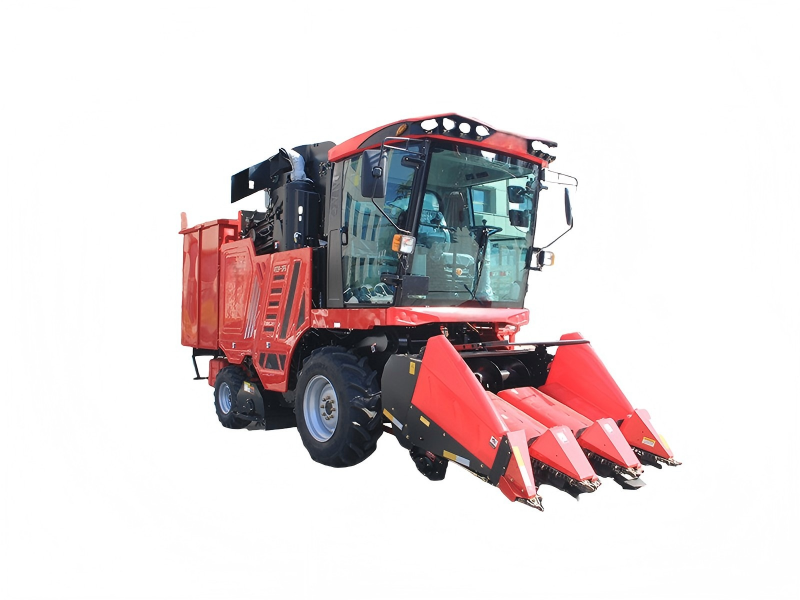

| 图片： image： |    | ||
| 配置描述： Description of configuration: | 板式割台，行距600，升运器宽度560，玉柴200马力，前置还田，中置还田1850，电磁阀，一杆操作，一泵一马达液压行走，前刹，后刹，高低辊剥皮机，抽拉式籽粒箱，封闭底板驾驶室，悬浮操控箱，倒车影像，仓满影像，配双排杂吸风机，液压主离合，配动力输出，配北斗定位，配空调。 Plate-type header, row pitch 600, elevator width 560, Yuchai 200HP, front return field, middle return field 1850, solenoid valve, one lever operation, one pump and one motor hydraulic walking, front brake, rear brake, high and low roll peeling machine, pull-out grain box, enclosed floor cab, suspended control box, reversing video, full warehouse video, equipped with double row miscellaneous suction fan, hydraulic main clutch, power output, Beidou positioning, equipped with air conditioner. | ||
| 产品特点 Product Features： | “金大丰”4YZP-3FG 型自走式玉米收获机，整机机构紧凑，转弯半径小；掉头转场灵活机动，全新不对行辊式割台，适用玉米不同成熟期，适应范围比较广泛。 全新封闭豪华空调驾驶室，悬浮座椅，多功能操作台一杆操作，驾乘更舒适；挂倒挡还田机自动升起，驾乘更安全。 GOLD Dafeng 4YZP-3FG self-propelled corn harvester has compact mechanism and small turning radius; The turnaround is flexible and flexible, and the new non-walking roller header is applicable to different maturity periods of corn, with a wide range of adaptability. Newly-enclosed luxury air conditioning cab, suspended seat, multi-function console one-lever operation, more comfortable driving; Shifting to the reverse gear will automatically lift the returning machine, making driving safer. | ||
| 1、高效率：200马力发动机，动力强劲，每小时可收获5-9亩; 2、高强度：底盘车架采用16锰型材，抗颠簸，耐冲击; 3、超灵活：6.6米短车身，转弯半径小，干活效率高; 4、超舒适：全新封闭豪华空调驾驶室，悬浮座椅，多功能操作台一杆操作，驾乘更舒适; 5、适应性强：15.5/80-24大驱动轮胎，1. 63米前轮距，稳定性好,承载能力强，防陷能力强，雨后作业不打滑; 6、性能稳：自制加强型D4.7变速箱+封闭边减箱，适合复杂工况作业。 1. High efficiency: 200 HP engine, strong power, 5-9 mu per hour; 2. High-strength: chassis frame adopts 16 manganese profile, which is resistant to bumping and impact; 3. Super flexible: 6.6m short body, small turning radius and high work efficiency; 4. Ultra comfortable: new enclosed luxury air conditioning cab, suspended seat, multi-function console one-lever operation, more comfortable driving; 5. Strong adaptability: 15.5/80-24 large drive tire, 1 M front wheel track, good stability, strong bearing capacity, strong anti-collapse capacity, no slipping after raining; 6. Stable performance: self-made reinforced D4.7 transmission+closed side reducer, suitable for complex working conditions. | |||
