4YZP-3H
| 型 号 Model | 4YZP-3H | 4YZP-3H | ||
| 结构型式Structural type： | / | 轮式、摘穗、剥皮、秸秆还田 wheel type, ear picking, peeling, straw returning | 轮式、摘穗、剥皮、秸秆还田 wheel type, ear picking, peeling, straw returning | |
| 外形尺寸（长×宽×高） Dimension (L×W×H)： | 毫米mm | 6350×1820×3120 | 6350×1970×3120 | |
| 整机质量Mass of complete machine | 千克kg | 4780 | 4850 | |
| 收割台 Header | 割台型式Header type | / | 卧式horizontal type | 卧式horizontal type |
| 工作行数（通道数）Number of operating lines (number of channels) | 行 | 3 | 3 | |
| 行距row pitch | 毫米mm | 520 | 600 | |
| 工作幅宽Working breadth | 毫米mm | 1670 | 1830 | |
| 摘穗机构型式Type of ear picking mechanism | / | 拉茎辊、摘穗板式 Stem pulling roller, ear picking plate | 拉茎辊、摘穗板式 Stem pulling roller, ear picking plate | |
| 摘穗辊数量Number of ear picking rollers | 件 | 6 | 6 | |
| 升运器 lift conveyer | 果穗升运器布置位置Layout of ear elevator | / | 右置 Right placed | 右置 Right placed |
| 果穗升运器结构型式Structural type of ear elevator | / | 链条刮板式 Chain scraper type | 链条刮板式 Chain scraper type | |
| 发动机 Engine | 型号Model | / | SD120GⅣ | SD120GⅣ |
| 型式Type | / | 4缸、直列、四冲程、高压共轨 four-cylinder, in-line, four-stroke, high-pressure common rail | 4缸、直列、四冲程、高压共轨 four-cylinder, in-line, four-stroke, high-pressure common rail | |
| 气缸数Qty of cylinders | / | 4 | 4 | |
| 标定功率Rated power | HP/KW | 120HP/88.24KW | 120HP/88.24KW | |
| 标定转速Rated speed | r/min | 2400 | 2400 | |
| 剥皮机 Peeler | 剥皮机构型式Type of stripping mechanism | / | 平辊、橡胶辊 Flat roller, rubber roller | 平辊、橡胶辊 Flat roller, rubber roller |
| 剥皮辊数量Number of stripping rollers | 个 | 12 | 12 | |
| 还田机 Field returning machine | 型式Type | / | 甩刀式 Swing blade type | 甩刀式 Swing blade type |
| 秸秆粉碎还田机构位置 Location of straw crushing and returning mechanism | / | 割台下方 Below the harvesting head | 割台下方 Below the harvesting head | |
| 秸秆粉碎还田机构工作幅宽 Working Width of Straw Crushing and Returning Mechanism | 毫米mm | 1380 | 1540 | |
| 卸粮方式Grain unloading mode： | / | 液压侧翻式Hydraulic rollover type | 液压侧翻式Hydraulic rollover type | |
| 籽粒回收箱形式Grain recycling box form： | / | 固定闸门式 Fixed gate type | 固定闸门式 Fixed gate type | |
| 驾驶室型式Type of cab： | / | 简易驾驶室 Simple driving cab | 简易驾驶室 Simple driving cab | |
| 变速机构型式： Type of transmission mechanism： | / | 机械变速箱+静液压无级变速 Mechanical transmission+hydrostatic stepless transmission | 机械变速箱+静液压无级变速 Mechanical transmission+hydrostatic stepless transmission | |
| 驱动型式Driving Type： | / | 四驱4x4WD | 四驱4x4WD | |
| 最小离地间隙Mini clearance： | mm | 280 | 280 | |
| 作业速度 Working speed： | km/h | 1.84～5.2 | 1.84～5.2 | |
| 驱动轮轮距Drive wheel track： | 毫米mm | 1300 | 1300 | |
| 导向轮轮距Guide wheel track： | 毫米mm | 1365 | 1365 | |
| 轴距wheel base： | 毫米mm | 2200 | 2200 | |
| 驱动轮轮胎规格： Drive wheel tire specifications： | / | 人字加宽胎（13.6-20有内胎14层级） Herringbone widening tire (13.6-20 with inner tube 14 layers) | 人字加宽胎（13.6-20有内胎14层级） Herringbone widening tire (13.6-20 with inner tube 14 layers) | |
| 导向轮轮胎规格： Specification of guide wheel tire： | / | 人字轮胎10-15（12层级） Herringbone tyre 10-15 (12 levels) | 人字轮胎10-15（12层级） Herringbone tyre 10-15 (12 levels) | |
| 作业效率Productivity： | hm²/h | 0.3～0.4 | 0.3～0.5 | |
| 粮箱容积Grain tank： | m³ | 1.7 | 1.7 | |
| 油箱容量 fuel tank capacity： | L | 142 | 142 | |

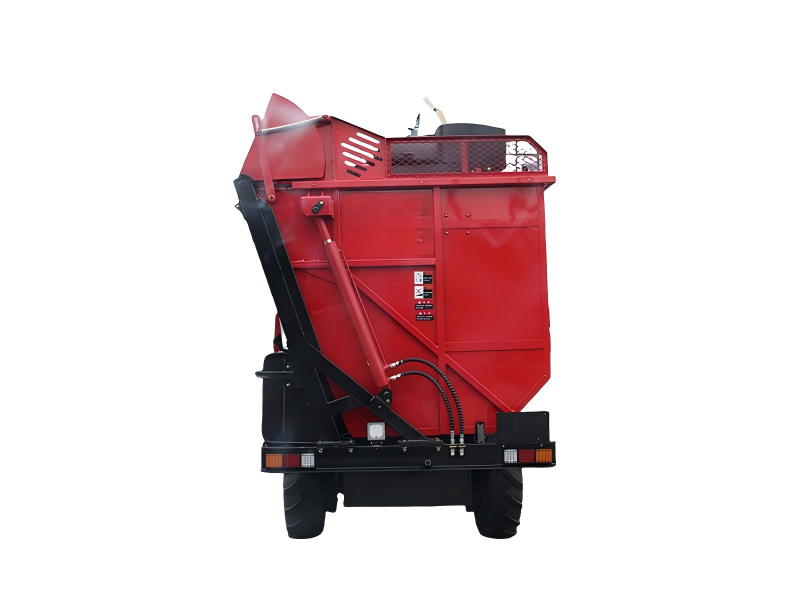

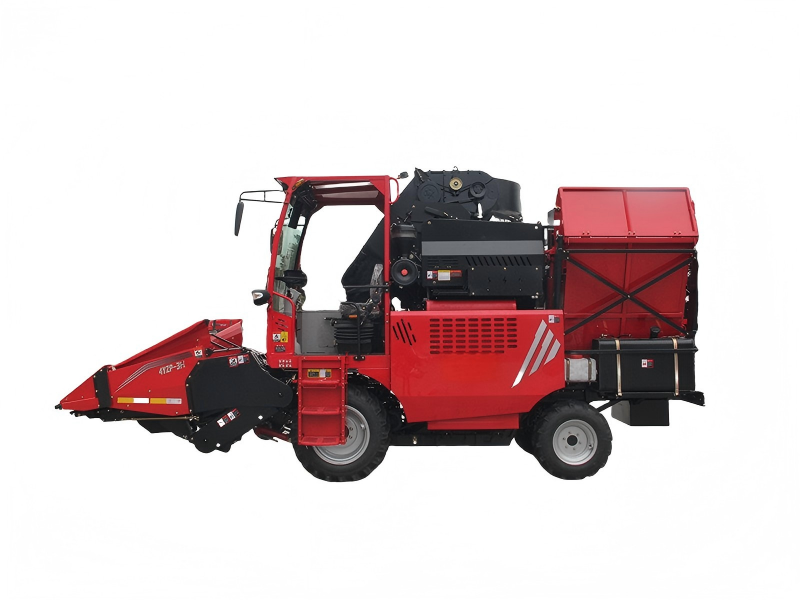

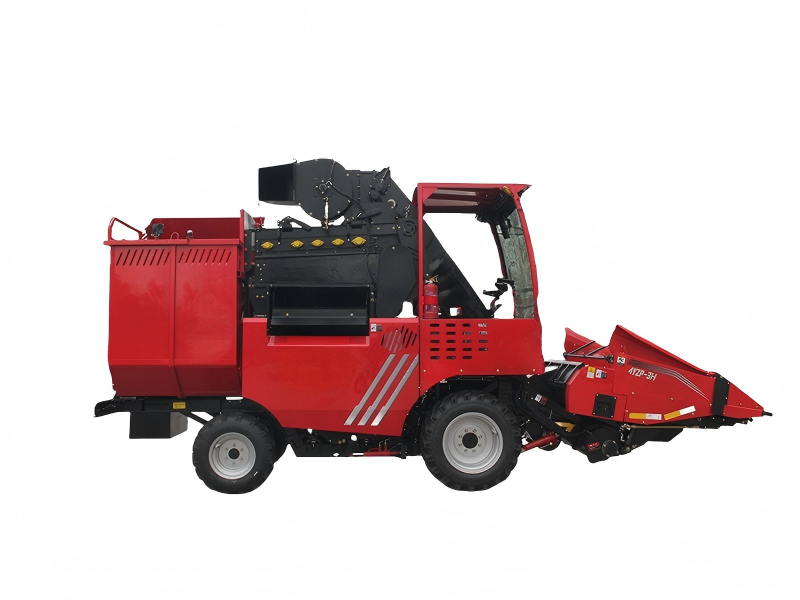

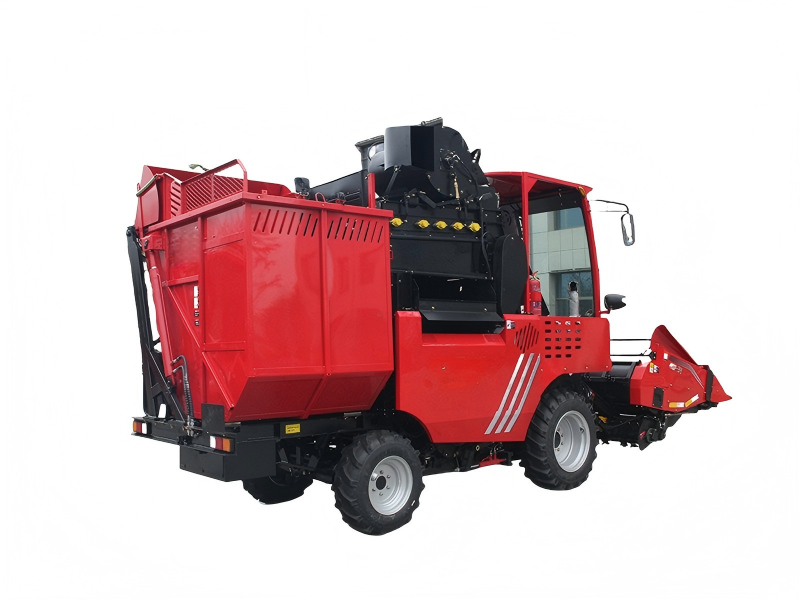

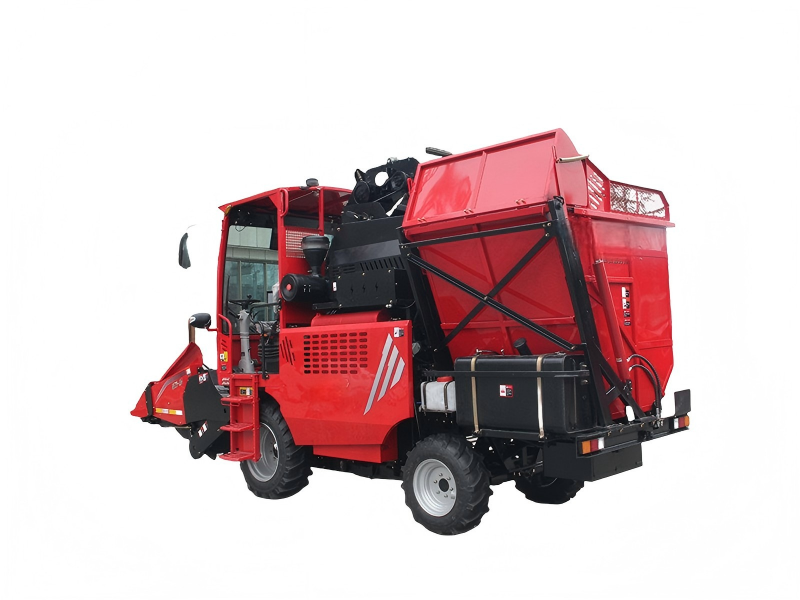

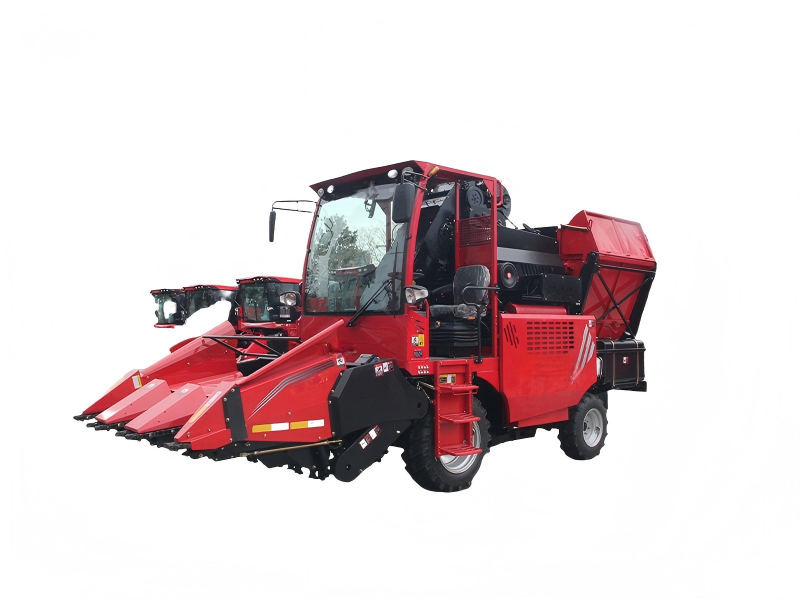

| 图片： image： |     | |||
| 配置描述： Description of configuration: | 4YZP-3H（2025PZ1）四达120马力，四驱，板式不对行割台，行距520，配独立升降1380前粉，配后排杂吸风机，电磁阀，一杆操作，HST液压行走，12辊平辊剥皮机，液压主离合,集中注油、自动润滑 4YZP-3H (2025PZ1) up to 120 HP, four-wheel drive, plate type nonparallel header, row pitch 520, equipped with independent lifting 1380 front powder, equipped with rear row miscellaneous suction fan, solenoid valve, one-rod operation, HST hydraulic walking, 12-roller flat roll peeling machine, hydraulic main clutch, centralized oil injection and automatic lubrication | 4YZP-3H（2025PZ2）四达120马力国四，四驱，板式不对行割台，行距600，配独立升降1540前粉，配后排杂吸风机，电磁阀，一杆操作，HST液压行走，12辊平辊剥皮机，液压主离合，集中注油、自动润滑 4YZP-3H (2025PZ2) four up to 120 HP Guosi, four-wheel drive, plate-type non-parallel header, row pitch of 600, equipped with independent lifting 1540 front powder, equipped with rear row miscellaneous suction fan, solenoid valve, one-rod operation, HST hydraulic walking, 12-roller flat roll peeling machine, hydraulic main clutch, centralized oil injection and automatic lubrication | ||
| 产品特点 Product Features： | “金大丰”4YZP-3H 型自走式玉米收获机，整机机构紧凑，转弯半径小；掉头转场灵活机动，适合在小块田地和复杂地形（例如：山地，丘陵）中作业。全新不对行辊式割台，适用玉米不同成熟期，适应范围比较广泛， 配备前置切碎装置，秸秆粉碎效果好，还田效果佳。采用加强型变速箱和封闭边减箱，适合复杂工况作业。行走系统配备HST液压变速，可根据不同地块调整作业速度。 GOLD Dafeng 4YZP-3HType self-propelled corn harvester with compact mechanism and small turning radius; Turning around is flexible and suitable for small fields and complex terrain (e.g. mountainous, hilly). The new non-row roller header is applicable to different maturity periods of corn, with a wide range of adaptability. It is equipped with a front chopping device, with good straw smashing effect and good field returning effect. The reinforced gearbox and enclosed side reducer are adopted, which are suitable for complex working conditions. The traveling system is equipped with HST hydraulic transmission, and the operation speed can be adjusted according to different plots. | |||
