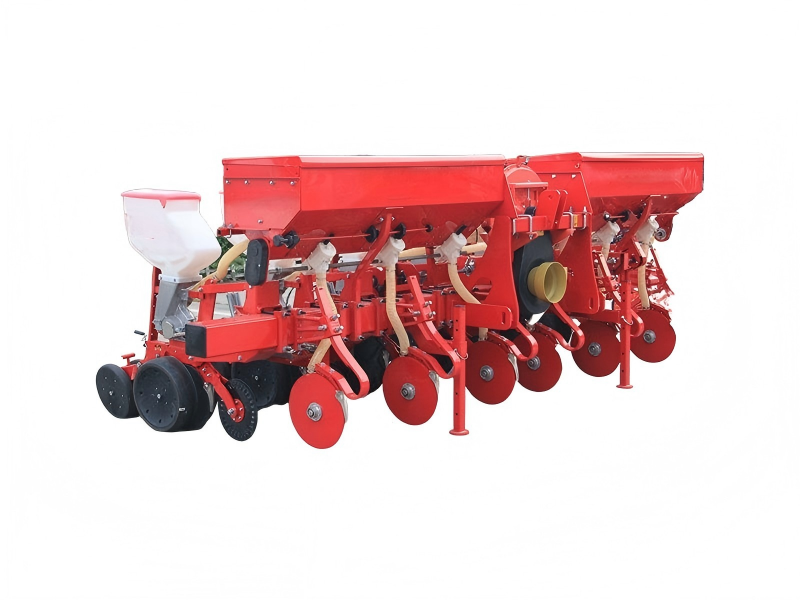

Air Suction Seeder
PRODUCT DESCRIPTION
①Imported air suction seed metering device, with high seeding accuracy and strong working reliability. By replacing different seed trays, different seeds can be sown.
② The angle of the seeding tube is reasonable, realizing precise hole sowing.
③Four-link profiling structure, single ground pressure spring adjustment, consistent seeding depth.
④The fertilizing and seeding furrow opener is made of boron steel and has a bow plate type. It has a wide range of row spacing adjustment and can realize both flat and ridge farming.
⑤Imported high-speed and large-volume fans can meet up to 24 rows of single air volume requirements.
⑥Enlarge the fertilizer box to improve sowing efficiency and reduce fertilizer addition time. The impeller of the fertilizer discharger is made of imported rubber material, which has long life and corrosion resistance. Easily control the amount of fertilizer by adjusting the handle.
⑦The seeding monitor can detect missed sowing at the first time, greatly improving work efficiency.
PRODUCT PARAMETERS
|
Project |
Parameters |
|
Model number |
2BQ-6 |
|
Structural type |
Pneumatic type; hanging type |
|
Supporting power range |
66.2～110.3 |
|
Overall dimensions of the machine (length & times; width & times; height) |
2000×4430×1580 |
|
Operation hour productivity |
2.64～3.52 |
|
Line spacing |
550～750 |
|
Number of working lines |
6 |
|
Seed/fertilizer box volume |
Seed box: 36×6/fertilizer box 280×2 |
|
Transmission mechanism type |
Chain drive |
|
Gutter type |
Species: disc type/Fat: disc type |
