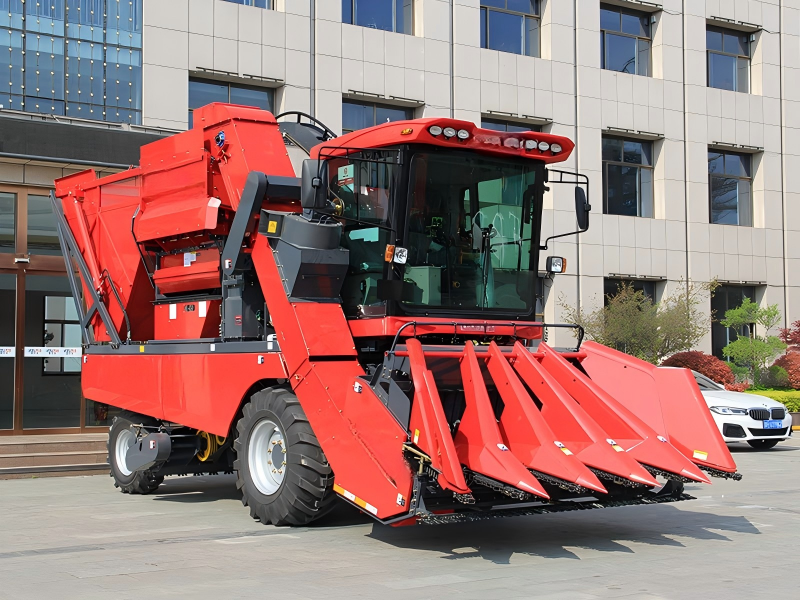

Self-propelled Stalk-Spike Corn Harvester

TECHNICAL PARAMETERS

Product model	4YZPSJ-5C (G4)	4YZPSJ-5DA (G4)
Number of job lines	5 lines
Supporting power (ps)	Weichai 300
Transmission mechanism type	Hydrostatic drive
Dimensions (L×W×H) (mm)	8200×2850×3800	8420×3130×3900
Working width (mm)	2820±100 (adjustable)	3020±100 (adjustable)
Header type (mm)	Vertical
Straw chopping and recycling mechanism type	Roller chopper + fan + throwing tube
Working width of field returning machine (mm)	2600
Quantity of peeling rollers (pieces)	20 rollers
Work efficiency (mu/hour)	6-10



PRODUCT FEATURES

1. High efficiency: Weichai P7 300-horsepower engine has strong power; the vertical roller harvester can pick ears quickly, hold the chain and move the pole upright, without falling, continuous pole, or falling pole.

2. Strong adaptability: the cutting width can be adjusted, and the reciprocating cutter is adjustable in four directions: up and down, front and back. Extended grass spray tube, long throw distance;

3. Stable performance: 28 pieces of laser cladding knives are arranged in a "herringbone" shape in the mowing machine, pulling and cutting like scissors, and the mowing effect is good. It is equipped with a weed-returning device, and the straw is collected without soil or impurities, and has a high degree of cleanliness.

4. Super comfortable: one pump and one motor hydrostatic drive, fast traveling speed and more comfortable driving. The electronic control handle operates with one lever and has fast response;

5. High strength: The frame chassis is made of 16 manganese material, which is resistant to bumps and impacts. 1000 type front axle + closed side box reduction, widened drive wheel and enlarged guide wheel to easily cope with operations under complex working conditions;

6. Intelligentization: Collision warning between the grass spray tube and the granary and silo; after scanning the code to register the mobile APP, the vehicle can be intelligently controlled and troubleshooted.
