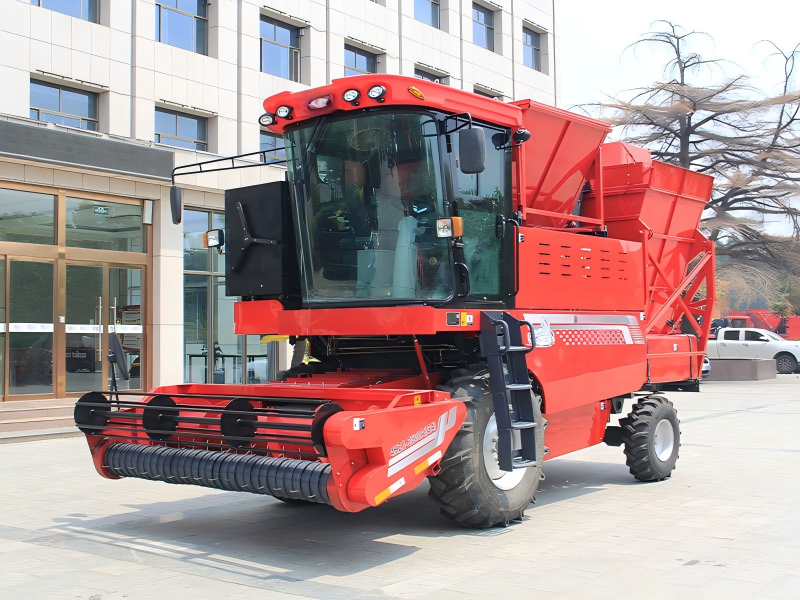

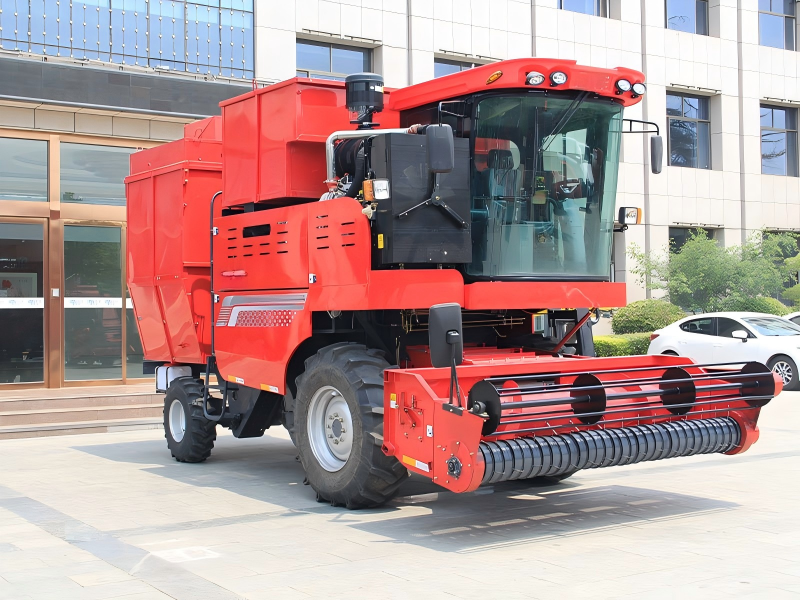

Self-propelled Peanut Picker Harvesting Machine
TECHNICAL PARAMETERS
| Model |
4LZJ-2500A |
|
Overall dimensions (L×W×H) mm |
6560×2875×3530 |
|
Working width of picking table (mm) |
2500 |
|
Supporting power (horsepower) |
Yuchai 150 horsepower |
|
Pick-up mechanism type |
Eccentric spring tooth type |
|
Fruit picking roller type |
Longitudinal axial flow knife tooth type |
|
Operation efficiency (mu/hour) |
5～10 |
|
Fruit box volume (m³) |
2.3 |
|
Transmission type |
Hydrostatic drive |
|
Drive form |
Four-wheel drive (front: hydraulic/rear: mechanical) |
|
How to deal with seedlings and vines |
Concentrate |
|
Select organizational form |
Centrifugal fan + vibrating screen |
TECHNICAL FEATURES
High efficiency: National IV 150-horsepower National IV engine, high-positioned in the front. The water tank guard is equipped with an airflow negative pressure rotating dust removal mechanism, which has good heat dissipation effect. It is equipped with a fuel-saving switch, which saves fuel during transition and harvesting.
High temperature resistance: The main transmission components of the whole machine are all imported bearings (such as the picker slide bearing and the front bearing of the fruit picking roller); they have good sealing performance and high temperature resistance.
Super flexible: The braking system uses front discs and rear drums, and hydraulic power assist, which saves effort in operation and has reliable performance; the picker header is supported by double oil cylinders, and the smooth steering system for lifting and lowering the header uses an independent constant-current gear pump, making the steering light and flexible.
Super comfortable: The cab is designed with all-round perspective and has a wide viewing angle; the warehouse full image is used to observe the status of the ear box at all times; the residual conveying image is installed on the top of the conveyor belt to observe the conveying status at all times.
Low damage rate: The centrifugal fan is used to collect the fruit, and the shell damage rate is low; the suction type is used to discharge the grass, the wind speed is high, the grass is discharged smoothly, and the grass is cleaner.
Stable performance: hydrostatic drive, comfortable control. Four-wheel drive, non-slip on sandy and muddy terrain.
Nationwide joint warranty: nearly 300 service outlets across the country and 24-hour service hotline to ensure timely and in-place services.
