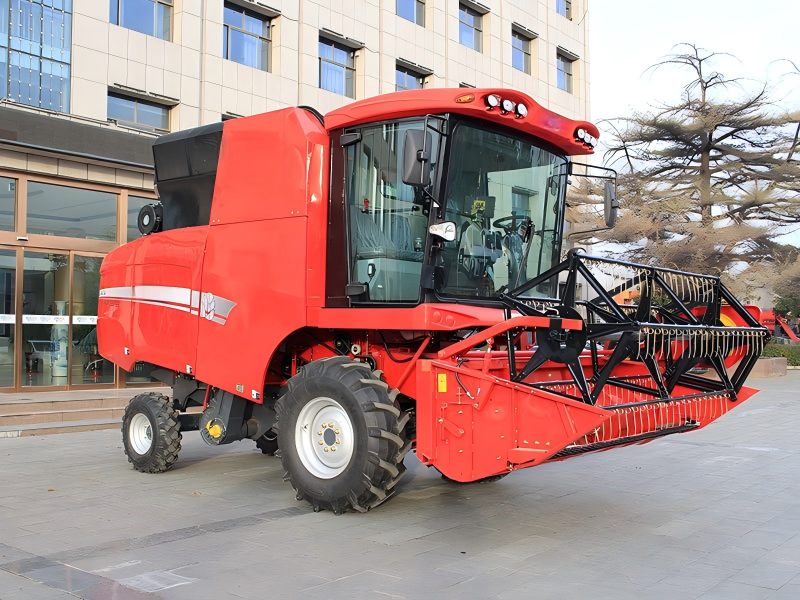

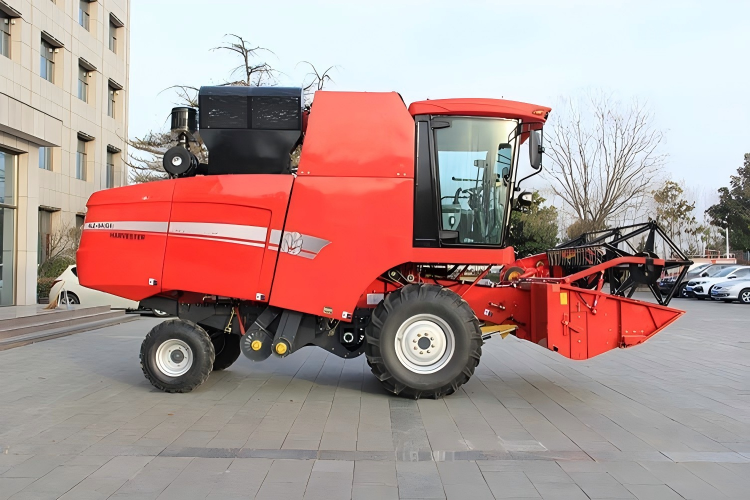

Self-propelled Grain Combine Harvester

TECHNICAL PARAMETERS

Project	Unit	Parameters
Model number	/	4LZ-9A (G4)
Engine power	PS	190/175
Cut width	mm	2750/2560
Feeding volume	kg/s	9
Threshing and separation method	/	Tangential flow + transverse flow
Dimensions (L×W×H)	mm	6700×3390×3380
Granary capacity	m³	2.6
Grain unloading height	mm	3400
Wheel width	mm	Front 1900/Back 1800
Work efficiency	hm2/h	0.6-1.3



PRODUCT FEATURES

1. The grain unloading height is 3.4 meters, and the inner diameters of the vertical and horizontal grain unloading cylinders are thickened to 300mm and 260mm respectively, making grain unloading more efficient;
2. The granary is lengthened in the left and right directions, the overall height is increased, and the volume is increased, allowing more loading and less unloading.
3.350L fuel tank, sufficient for a day's operation.
4.10-inch display, new engine image monitoring.
5. Peer maintenance-free bearings are used in key parts such as intermediate shafts, roller shafts, bridge drive shafts, etc., with strong load-bearing capacity and long durability.
6. The transmission belt adopts a black toothed belt, which has high transmission efficiency, strong pulling force, good heat dissipation, and does not slip or lose speed.
7. The cutting table returns to position with one click, making it easier to adjust the cutting height.
8. One-pole control, efficient and convenient.
9. Adding a new hand washing box eliminates the need for later installation.
