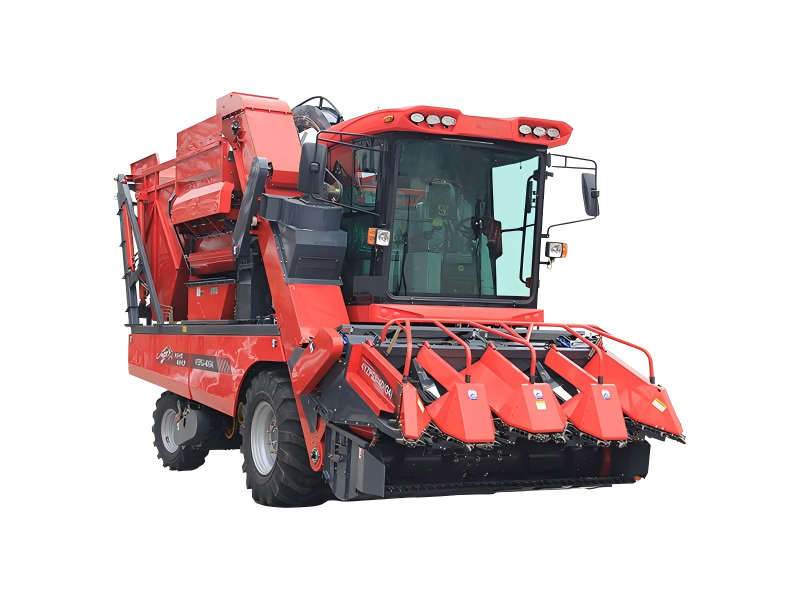

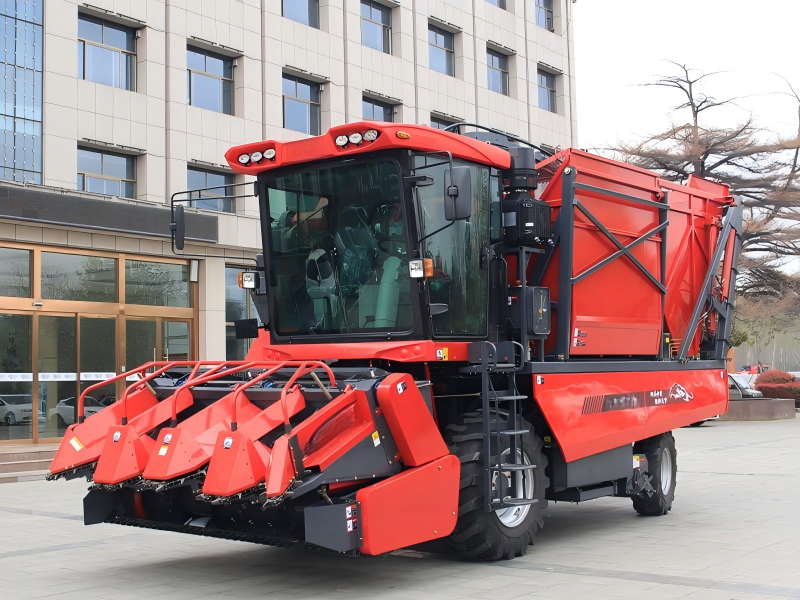

Self-propelled Corn Harvesting Machine
TECHNICAL PARAMETERS
Model | 4YZPSJ-4D(G4) |
Number of job lines | 4 lines |
Supporting power (ps) | Weichai 300 |
Transmission mechanism type | Hydrostatic drive |
Dimensions (L×W×H) (mm) | 8100×2800×3900mm |
Working width (mm) | 2390mm |
Header type (mm) | Horizontal |
Straw chopping and recycling mechanism type | Roller chopper + fan + throwing tube |
Working width of field returning machine (mm) | 2250mm |
Quantity of peeling rollers (pieces) | 20 |
Operation efficiency (mu/hour) | 6-8 acres/hour |
PRODUCT FEATURES
1. High efficiency: Weichai P7 300-horsepower engine has strong power; the super-wide bridge and widened to 660mm mower has fast feeding speed;
2. Strong adaptability: adaptable to different row headers and large and small row spacings. The ear box and forage box have lifting functions, the grain unloading height is 3.2 meters, and the grass unloading height is 4.2 meters, which is suitable for the grain unloading needs of heightened box-bang transport trucks;
3. Stable performance: The laser cladding guillotine blade adopts axial flow scraper throwing fan, which has good cutting effect into sections. The throwing tube is lengthened and the throwing distance is long.
4. Super comfortable: one pump and one motor hydrostatic drive, fast travel speed and more comfortable driving. The electronic control handle operates with one lever and has fast response;
5. High strength: The frame chassis is made of 16 manganese material, which is resistant to bumps and impacts. 1000 type front axle + closed side box reduction, widened drive wheel and enlarged guide wheel to easily cope with operations under complex working conditions;
6. Intelligent: Collision warning between the grass spray tube and the granary and silo; after scanning the code to register the mobile APP, the vehicle can be intelligently controlled and troubleshooted.
