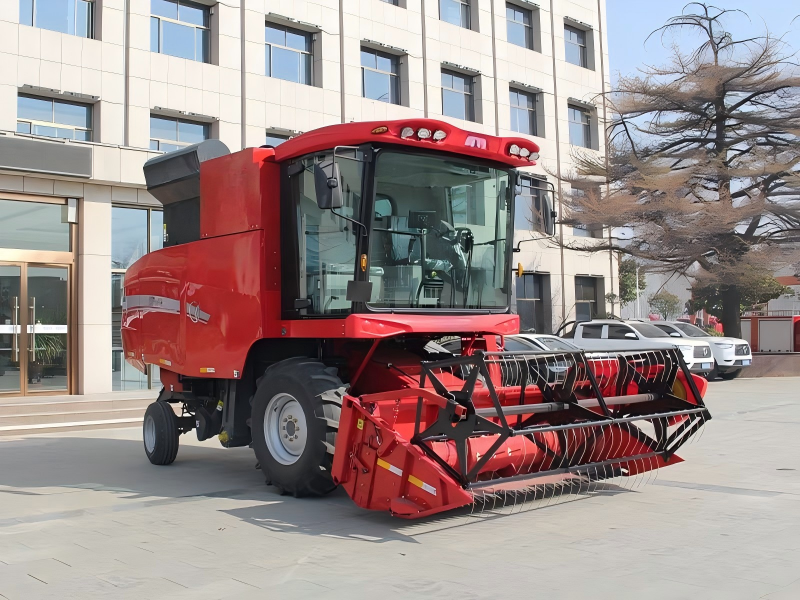

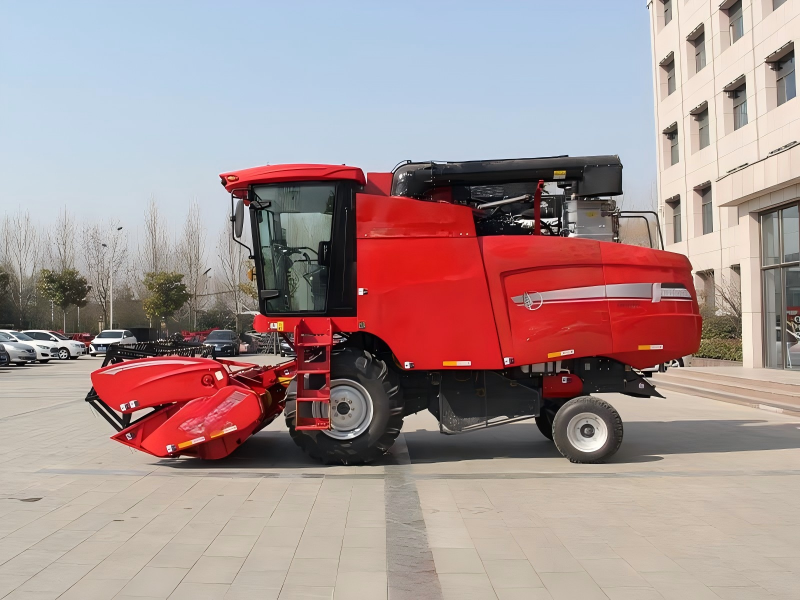

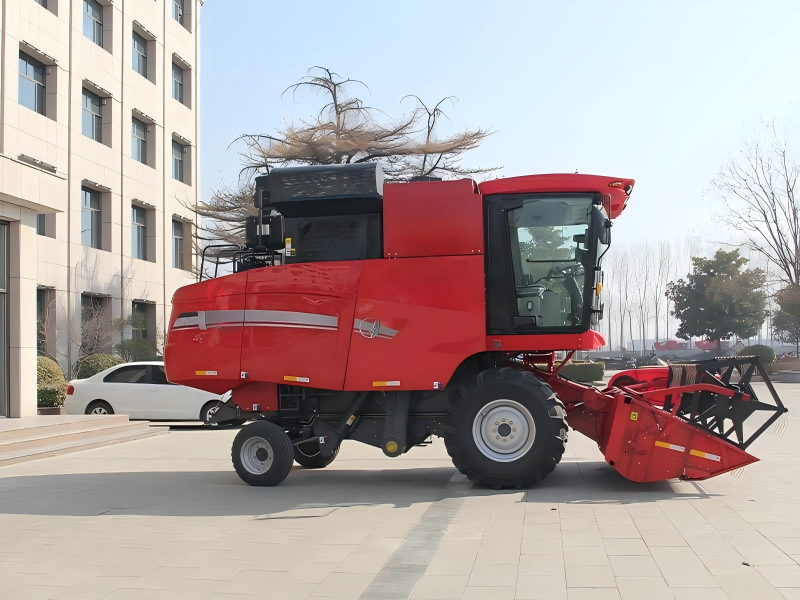

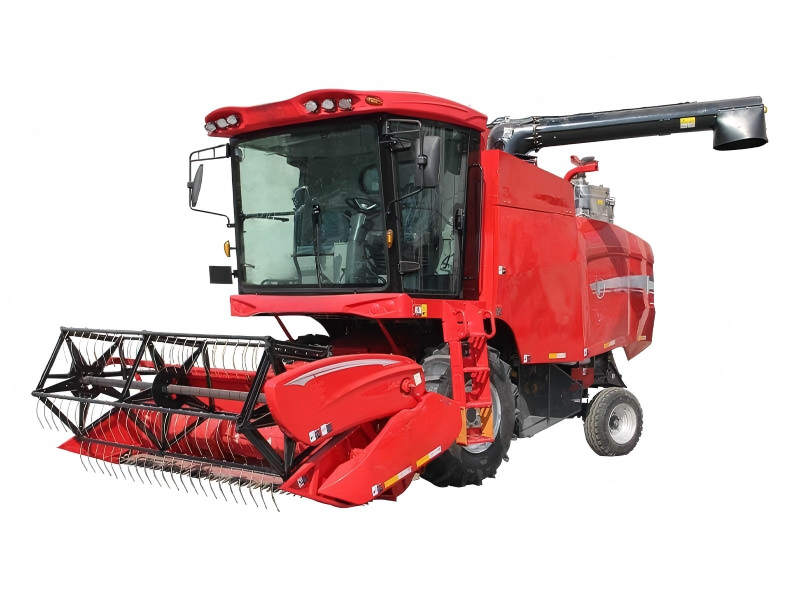

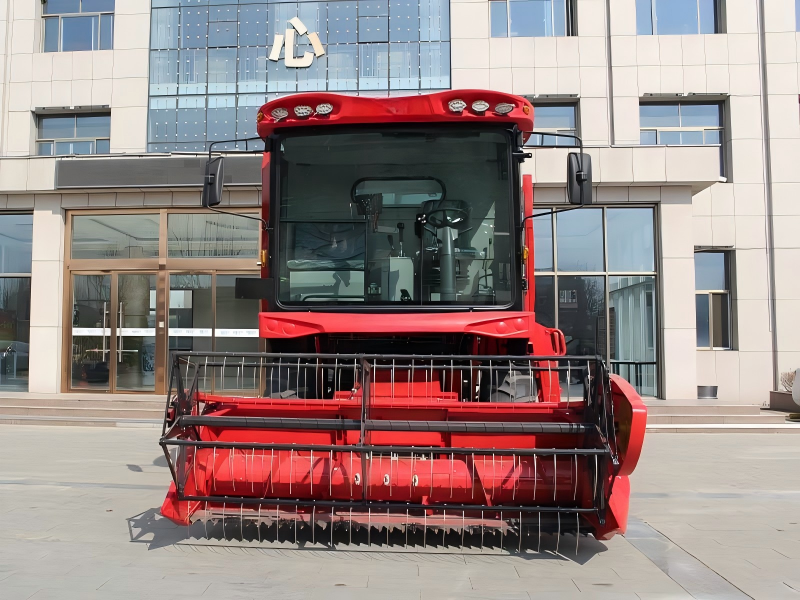

Self-propelled Grain Combine Harvester
PRODUCT FEATURES
High efficiency: 190 horsepower engine, 2.69m longitudinal axial flow drum, high operating efficiency.
High strength: The chassis frame (threshing room frame beam) is made of 16 manganese profiles, which has high strength and is more durable;
Super flexible: short body, small turning radius, and high work efficiency.
Super comfortable: Brand new enclosed cab, suspended seats, spacious space, more comfortable driving;
One machine has multiple uses: it can be modified to harvest soybeans, corn, sorghum and other crops;
Good control: equipped with one pump and one motor travel system as standard. Multifunctional electronic control handle makes operation more convenient.
Nationwide joint warranty: More than 300 service outlets across the country provide 24-hour service to ensure timely and in-place services;
TECHNICAL PARAMETERS
|
Project |
Parameters |
|
Model number |
4LZ-8C |
|
Power |
Weichai 190 |
|
Gearbox form |
Hydraulic continuously variable transmission + mechanical gearbox |
|
Feeding volume |
8kg/s |
|
Outline dimensions (mm) |
6550×3050×3550 |
|
Cutting width (mm) |
2750 |
|
Operation efficiency (mu/hour) |
9～15 |
|
Wheel base (mm) |
Front: 1900/ Rear: 1850 |
|
Wheelbase (mm) |
2710 |
|
Granary volume（m³） |
2.8 |
|
Grain unloading height (m) |
3.2 |
|
Threshing type |
Longitudinal axial flow roller |
|
Clear selection method |
Reciprocating vibrating screen + centrifugal fan |
PRODUCT ADVANTAGES
As a small longitudinal axial flow product, Jindafeng's 2023 longitudinal axial flow wheat machine has been continuously upgraded to better meet the harvest of different crops with the advantages of high efficiency, comfort, reliability, loss reduction, and one machine with multiple functions in one!
1. One machine for multiple purposes
Equipped with a 2.75m header, optional grain header, sorghum, and flexible header, it can harvest wheat, corn, sorghum, soybeans and other crops, and is suitable for operations in the Central Plains, Northeast, and Northwest regions.
2. Blister shield
The appearance is beautiful while also taking into account the lightweight body. The streamlined body is more in line with the aesthetics of modern agricultural machinery operators.
3. Stronger power:
Weichai 190 horsepower engine + 350L rotomolded fuel tank, long continuous operation time.
4. Super flexible
Ultra-small turning radius of 5.5 meters, fast U-turn;
Quickly unload grain
The grain unloading height is 3.2 meters, the vertical grain unloading tube is thickened, and the horizontal tube is thickened to 270mm, which ensures fast grain unloading speed.
6. Reliable quality:
The chassis frame (threshing room frame beam) adopts 16 manganese profiles, which is high in strength and more durable. The large torque closed wheel reducer has strong load-bearing capacity and is guaranteed for long-distance cross-region operations;
7. Driving comfort:
The hydraulic stepless transmission system with one pump and one motor allows the driving speed to reach 40km/h and the transition speed is faster; one-lever control and a new one-button return of the header ensure uniform cutting height.
8. Built-in air conditioner
Original super forced cooling air conditioner with good cooling effect.
9. Wide adaptability:
The 2.69m longitudinal axial flow drum is more suitable for high-yielding crops. The rotation speed (350, 450, 700r/min) is adjustable in three gears and the concave plate gap is adjustable in 6 gears, allowing for good harvesting results for different crops;
10. Standard straw chopper
Harvesting, crushing and shaping are done once to meet the needs of customers in different regions.
11. Imported bearings for key parts
Pier bearings are used in key parts such as the driving shaft assembly, front end of the threshing drum assembly, bridge driving shaft, grain horizontal auger, and debris horizontal auger.
12. Transmission belt-toothed belt
The transmission belt adopts a black toothed belt, which has high transmission efficiency, good heat dissipation and no slipping.
