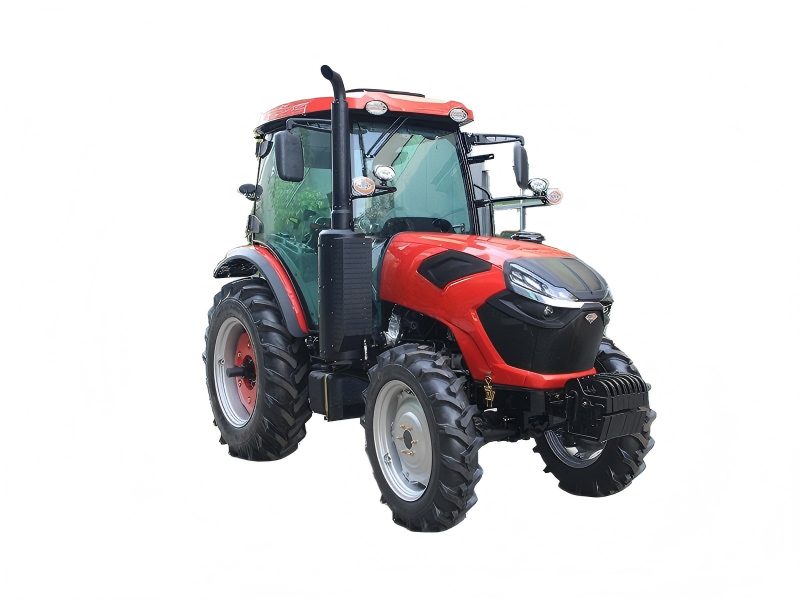

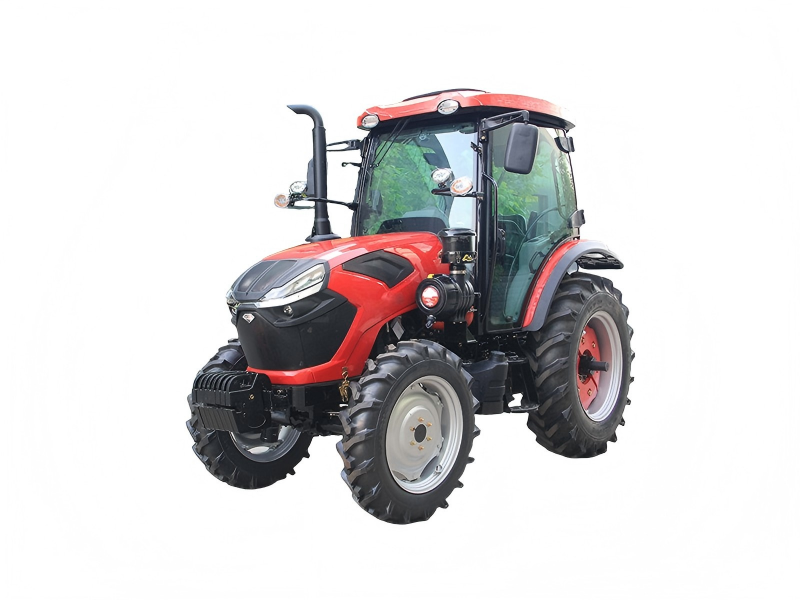

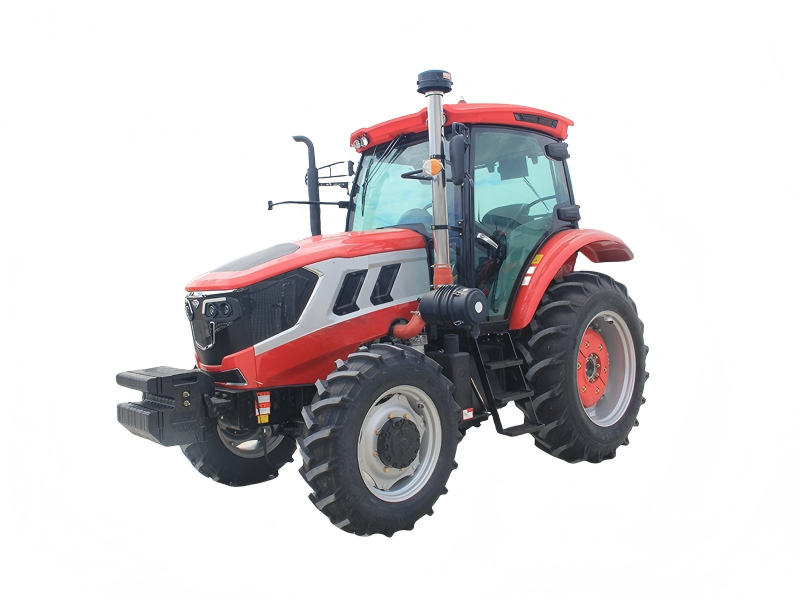

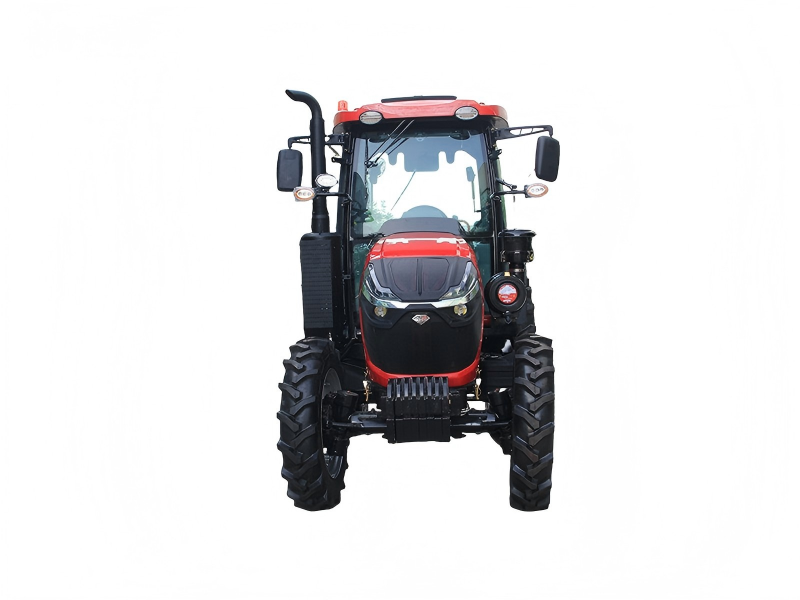

Tractor
| Model | XA 904 | XA 1004 | XA 1204 | ||
| Dimension (L*W*H) | mm | 4600*2200*2950 | 4600*2200*2950 | 4600*2200*2950 | |
| Min. operating weight | kg | 4220 | 4220 | 4220 | |
| Wheelbase | mm | 2240 | 2240 | 2240 | |
| Wheel track (front/rear) | mm | 1440-1740/1610-2210 | 1440-1740/1610-2210 | 1440-1740/1610-2210 | |
| Engine | Model | / | YTO90HP four-cylinder National II | YTO100HP four-cylinder National II | YTO120HP six-cylinder National II |
| Type | / | Vertical, water-cooling, four stroke, common rail Vertical, water-cooling, four stroke, common rail | Vertical, water-cooling, four stroke, common rail Vertical, water-cooling, four stroke, common rail | Vertical, water-cooling, four stroke, common rail Vertical, water-cooling, four stroke, common rail | |
| Number of Cylinders Qty of cylinders | cylinder | 6 | 6 | 6 | |
| Rated power | HP/KW | 90HP/66.17KW | 100HP/73.53KW | 120HP/88.3KW | |
| Rated speed | r/min | 2200 | 2200 | 2200 | |
| Drive train Drive train | Clutch | / | Single disc, dry, independent control, dual stage | Single disc, dry, independent control, dual stage | Single disc, dry, independent control, dual stage |
| Gearbox | / | TDF16+8 | TDF16+8 | TDF16+8 | |
| Gear shift type | / | shift sleeve | shift sleeve | shift sleeve | |
| Steering | Steering type | / | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering |
| Brake | Brake type | / | Mechanical control, wet, disc | Mechanical control, wet, disc | Mechanical control, wet, disc |
| Walking device | Tire size (front/rear) | / | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 |
| Working device Working device | Suspension device type Suspension device type | / | Rear, three-point suspension | Rear, three-point suspension | Rear, three-point suspension |
| Suspension device category | / | Category II | Category II | Category II | |
| Tillage Depth Adjustment | / | Height adjustment, floating control | Height adjustment, floating control | Height adjustment, floating control | |
| Hydraulic output device | group | 2 | 2 | 2 | |
| Standard PTO speed | r/min | 6键540/1000 | 6键540/1000 | 6键540/1000 | |
| Other | rops/cab | rops | rops | rops | |
| Standard configuration: | YTO90HP four-cylinder engine, 12-inch independent dual-action clutch, clutch mechanical assist, TDF16+8 high and low gears (helical gear), thickened half pipe, steplessly adjustable rear wheels, flat floor and safety frame, 12.4-24/16.9-34 tires, two sets of hydraulic outputs, dual high-pressure lifters, suspension components, 10 pieces of 40 kg front weights/piece, 160 kg rear weights | YTO100HP four-cylinder engine, 12-inch independent dual-action clutch, clutch mechanical assist, TDF16+8 high and low gears (helical gear), thickened half pipe, steplessly adjustable rear wheels, flat floor and safety frame, 12.4-24/16.9-34 tires, two sets of hydraulic outputs, dual high-pressure lifters, suspension components, 10 pieces of 40 kg front weights/piece, 160 kg rear weights | YTO120HP six-cylinder engine, 12-inch independent dual-action clutch, clutch mechanical assist, TDF16+8 high and low gears (helical gear), thickened half pipe, steplessly adjustable rear wheels, flat floor and safety frame, 12.4-24/16.9-34 tires, two sets of hydraulic outputs, dual high-pressure lifters, suspension components, 10 pieces of 40 kg front weights/piece, 160 kg rear weights | ||
| Other optional: Available | Swinging drawbar +¥1000(CNY) | Swinging drawbar +¥1000(CNY) | Swinging drawbar +¥1000(CNY) | ||
| Quick hitch +¥800(CNY) | Quick hitch +¥800(CNY) | Quick hitch +¥800(CNY) | |||
| Air brake system (including air pump) +¥2000(CNY) | Air brake system (including air pump) +¥2000(CNY) | Air brake system (including air pump) +¥2000(CNY) | |||
| Luxury air-conditioned cab +¥7200(CNY) | Luxury air-conditioned cab +¥7200(CNY) | Luxury air-conditioned cab +¥7200(CNY) | |||
| Change 14.9-26/18.4-38 +¥6000(CNY) | Change 14.9-26/18.4-38 +¥6000(CNY) | Change 14.9-26/18.4-38 +¥6000(CNY) | |||
| Add front mudguards +2500(CNY) | Add front mudguards +2500(CNY) | Add front mudguards +2500(CNY) | |||
| Pneumatic suspension seat +1200(CNY) | Pneumatic suspension seat +1600(CNY) | Pneumatic suspension seat +1600(CNY) | |||
| Tire replacement with radial tires (front 360/70R28, rear 620/75R30) +10600 (CNY) | Tire replacement with radial tires (front 360/70R28, rear 620/75R30) +10600 (CNY) | Tire replacement with radial tires (front 360/70R28, rear 620/75R30) +10600 (CNY) | |||
| LUK clutch +2000 | LUK clutch +2000 | LUK clutch +2000 | |||
  | |||||
