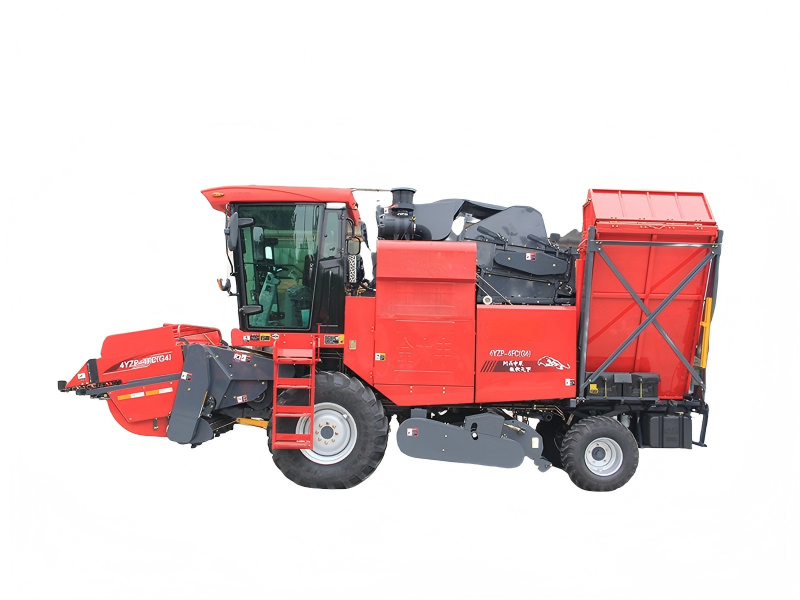

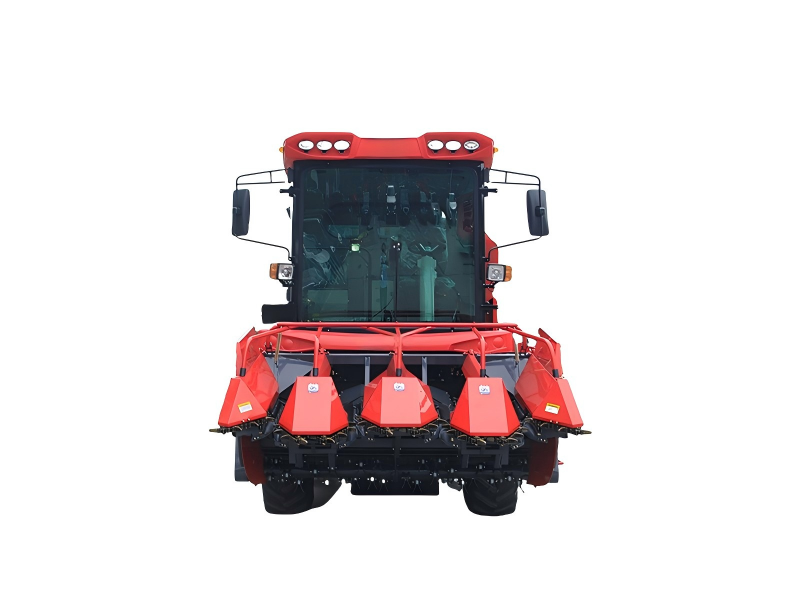

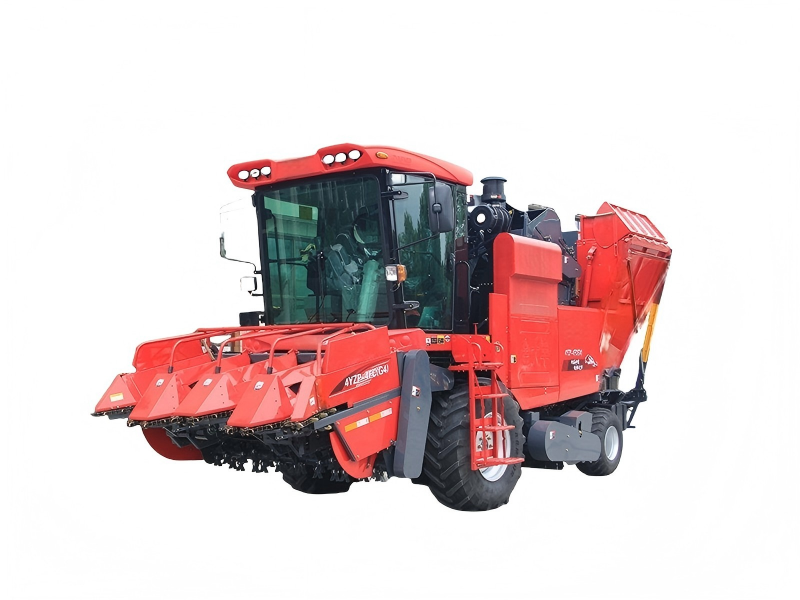

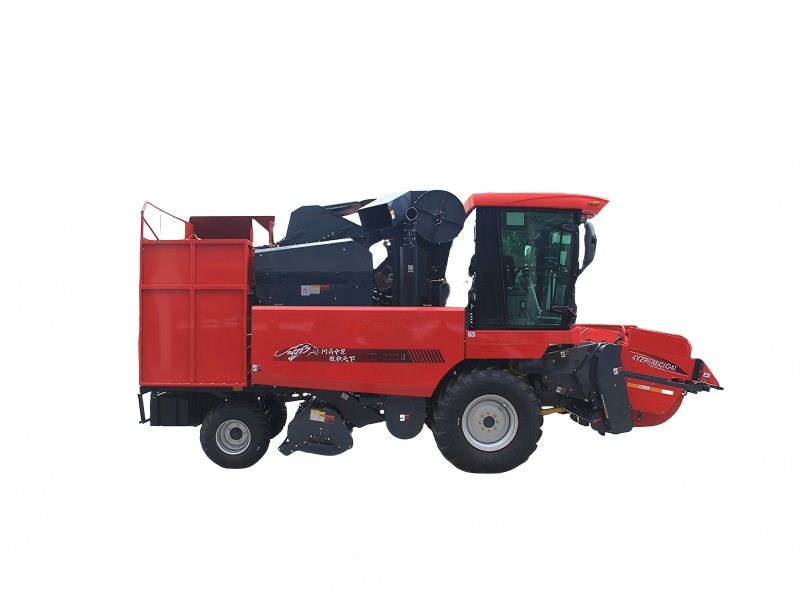

4YZP-4FC

The 2023 Jin Dafeng 4FC corn harvester uses a Cummins 240-horsepower engine with advanced American technology for its power system. It does not require urea and has an extra-long first maintenance cycle of one year or 500 hours, saving on operating costs.

The Cummins engine features tight cylinder spacing, small size, low vibration, and significantly reduced noise, greatly enhancing ride comfort.

All tires are from leading brands, specifically Xuelun brand, especially the drive tires which are 15R-24 radial tires, providing stronger grip and high wear resistance.

The 400/60-1.5 type extra-wide guide wheels prevent slippage in wet conditions and offer good anti-trapping performance.

The header row spacing has been widened to 600mm, better meeting the needs of planting row spacing in large mechanically sown fields.

The side deflectors are adjustable, offering greater adaptability. Sometimes, it's the little things that make a difference!

Model			4YZP-4FC
Structural type Structural type		/	Wheel type, ear picking, peeling, straw returning wheel type, ear picking, peeling, straw returning
Dimension (L×W×H)		mm	7120×2930×3400
Mass of complete machine		kg	8760
Header Header	Header type	/	horizontal type
	Number of operating lines (number of channels)	row	4
	row pitch	mm	600
	Working breadth	mm	2550
	Type of ear picking mechanism	/	Ear picking roller type Ear picking roller type
	Number of ear picking rollers	Item	8
lift conveyer lift conveyer	Layout of ear elevator	/	Center placed Center placed
	Structural type of ear elevator	/	Chain scraper type Chain scraper type
Engine Engine	Model	/	240GⅣ
	Type	/	Six-cylinder, in-line, four-stroke, high-pressure common rail Six-cylinder, in-line, four-stroke, high-pressure common rail
	Qty of cylinders	/	6
	Rated power	HP/KW	240HP/176.4KW
	Rated speed	r/min	2300
Peeler Peeler	Type of stripping mechanism	/	Rubber roller Rubber roller
	Number of stripping rollers	个	20
Field returning machine Field returning machine	Type	/	Swing blade type Swing blade type
	Location of straw crushing and returning mechanism Location of straw crushing and returning mechanism	/	Between front and rear tires Between front and rear tires
	Working Width of Straw Crushing and Returning Mechanism Working Width of Straw Crushing and Returning Mechanism	mm	2300
Type of cab		/	Luxury air-conditioned cab Luxury air-conditioned cab
Type of transmission mechanism： Type of transmission mechanism：		/	Mechanical transmission+hydrostatic stepless transmission Mechanical transmission+hydrostatic stepless transmission
Driving Type：		/	Two drive system
Mini clearance：		mm	240
Working speed：		km/h	2-6
Drive wheel track：		mm	1920
Guide wheel track：		mm	1650
wheel base：		mm	3000
Drive wheel tire specifications： Drive wheel tire specifications：		/	Radial tubeless tyre 15R24 149A8 R-1 Radial tubeless tyre 15R24 149A8 R-1
Guide wheel tire specifications： Guide wheel tire specification:		/	斜交线无内胎轮胎400-60-15.5-16PR-I-3E Diagonal Tubeless Tire 400-60-15.5-16PR-I-3E
Operational Efficiency:		hm²/h	0.4-0.7
Grain tank capacity:		m³	3.2
Fuel tank capacity:		L	420
Image: image:
Configuration Description: Description of configuration:	王子辊割台，行距600，康明斯240马力国四六缸发动机，前置粉碎，中置还田机2300，电磁阀，一杆操作，一泵一马达液压行走，前刹，后刹，20辊高低辊剥皮机，豪华驾驶室，钣金操控箱，仓满影像、倒车影像，单搅龙卸籽粒，配排杂吸风机，液压主离合，配动力输出，配北斗定位，配空调。 Prince roll header, row spacing of 600, Cummins 240 HP national four-six cylinder engine, front crushing, center farmland returning machine 2300, solenoid valve, one lever operation, one pump and one motor hydraulic walking, front brake, rear brake, 20 roll high and low roll peeling machine, luxury cab, metal plate control box, warehouse full image, reversing image, single auger grains unloading, equipped with exhaust fan, hydraulic main clutch, equipped with power output, equipped with Beidou positioning, equipped with air conditioner.
Product Features Product Features:	“金大丰”4YZP-4FC型自走式玉米收获机，整机机构紧凑，转弯半径小；液压行走，一杆操作，掉头转场灵活机动。全新不对行辊式割台，适用玉米不同成熟期，适应范围比较广泛。 GOLD Dafeng "4YZP-4FC self-propelled corn harvester has compact mechanism and small turning radius;Hydraulic walking, one-lever operation, flexible turnaround.The new non-row roller header is applicable to different maturity periods of corn, with a wide range of adaptability.
1.强劲动力：240马力发动机，动力强劲：轻载、中载、重载三挡变频，节能省油。 2.操纵舒适:一泵一马达液压行走,原装内置空调。多功能电控手柄,,立柱式行车仪表,方便驾驶员读取。 3.超强底盘:车架采用16猛型材,三角支撑梁结构,抗颠簸,耐冲击。驱动轮采用子午线轮胎、抓地力更强。加宽型导向轮，防陷效果好。 4.高效作业：割台行距600mm，双边链条传动，边拨禾角度可调，适用行距范围广； 20辊高效剥皮机,剥净率高; 5.保养便捷:传动链条采用自动润滑装置,剥皮机、风机轴承采用集中注油方式,保养省时省心。 6.智能料技：扫码注册手机APP后,可通过手机蓝牙与收割机互联互通,进行智能操控与故障排查。 1.Strong power: 240 HP engine, strong power: light load, medium load and heavy load three-gear frequency conversion, energy saving and fuel saving. 2.Comfortable operation: one pump, one motor, hydraulic walking, original built-in air conditioner.Multi-function electronic control handle, upright driving instrument, easy for the driver to read. 3.Super-strong chassis: the frame adopts 16 sections and triangular support beam structure, which is resistant to bumping and impact. The driving wheel adopts radial tire, with stronger grip.Widened guide wheel, with good anti-seffect. 4.High-efficiency operation: Header row spacing is 600mm, double-side chain transmission, and the reel angle is adjustable, which is applicable to a wide range of row spacing; High-efficiency 20-roller stripping machine with high stripping rate; 5.Convenient maintenance: the transmission chain adopts the automatic lubrication device, and the stripping machine and fan bearings adopt the centralized oil injection method, which saves time and mind. 6.Intelligent material technology: after scanning code and registering mobile APP, it can be interconnected with the harvester through mobile bluetooth for intelligent control and troubleshooting.
