4YZP-3H
| Model | 4YZP-3H | 4YZP-3H | ||
| Structural type: | / | Wheel type, ear picking, peeling, straw returning wheel type, ear picking, peeling, straw returning | Wheel type, ear picking, peeling, straw returning wheel type, ear picking, peeling, straw returning | |
| Dimension (L×W×H): | mm | 6350×1820×3120 | 6350×1970×3120 | |
| Mass of complete machine | kg | 4780 | 4850 | |
| Header Header | Header type | / | horizontal type | horizontal type |
| Number of operating lines (number of channels) | Lines | 3 | 3 | |
| row pitch | mm | 520 | 600 | |
| Working breadth | mm | 1670 | 1830 | |
| Type of ear picking mechanism | / | Stem pulling roller, ear picking plate type Stem pulling roller, ear picking plate | Stem pulling roller, ear picking plate type Stem pulling roller, ear picking plate | |
| Number of ear picking rollers | Pieces | 6 | 6 | |
| lift conveyer lift conveyer | Layout of ear elevator | / | Right placed Right placed | Right placed Right placed |
| Structural type of ear elevator | / | Chain scraper type Chain scraper type | Chain scraper type Chain scraper type | |
| Engine Engine | Model | / | SD120GⅣ | SD120GⅣ |
| Type | / | four-cylinder, in-line, four-stroke, high-pressure common rail four-cylinder, in-line, four-stroke, high-pressure common rail | four-cylinder, in-line, four-stroke, high-pressure common rail four-cylinder, in-line, four-stroke, high-pressure common rail | |
| Qty of cylinders | / | 4 | 4 | |
| Rated power | HP/KW | 120HP/88.24KW | 120HP/88.24KW | |
| Rated speed | r/min | 2400 | 2400 | |
| Peeler Peeler | Type of stripping mechanism | / | Flat roller, rubber roller Flat roller, rubber roller | Flat roller, rubber roller Flat roller, rubber roller |
| Number of stripping rollers | Pieces | 12 | 12 | |
| Field returning machine Field returning machine | Type | / | Swing blade type Swing blade type | Swing blade type Swing blade type |
| Location of straw crushing and returning mechanism Location of straw crushing and returning mechanism | / | Below the harvesting head Below the harvesting head | Below the harvesting head Below the harvesting head | |
| Working Width of Straw Crushing and Returning Mechanism Working Width of Straw Crushing and Returning Mechanism | mm | 1380 | 1540 | |
| Grain unloading mode: | / | Hydraulic rollover type | Hydraulic rollover type | |
| Grain recycling box form: | / | Fixed gate type Fixed gate type | Fixed gate type Fixed gate type | |
| Type of cab: | / | Simple driving cab Simple driving cab | Simple driving cab Simple driving cab | |
| Type of transmission mechanism: Type of transmission mechanism: | / | Mechanical transmission+hydrostatic stepless transmission Mechanical transmission+hydrostatic stepless transmission | Mechanical transmission+hydrostatic stepless transmission Mechanical transmission+hydrostatic stepless transmission | |
| Driving Type: | / | 4x4WD | 4x4WD | |
| Mini clearance: | mm | 280 | 280 | |
| Working speed: | km/h | 1.84～5.2 | 1.84～5.2 | |
| Drive wheel track: | mm | 1300 | 1300 | |
| Guide wheel track: | mm | 1365 | 1365 | |
| wheel base: | mm | 2200 | 2200 | |
| Drive wheel tire specifications: Drive wheel tire specifications: | / | Herringbone widening tire (13.6-20 with inner tube 14 layers) Herringbone widening tire (13.6-20 with inner tube 14 layers) | Herringbone widening tire (13.6-20 with inner tube 14 layers) Herringbone widening tire (13.6-20 with inner tube 14 layers) | |
| Specification of guide wheel tire: Specification of guide wheel tire: | / | Herringbone tyre 10-15 (12 levels) Herringbone tyre 10-15 (12 levels) | Herringbone tyre 10-15 (12 levels) Herringbone tyre 10-15 (12 levels) | |
| Productivity: | hm²/h | 0.3～0.4 | 0.3～0.5 | |
| Grain tank capacity: | m³ | 1.7 | 1.7 | |
| Fuel tank capacity: | L | 142 | 142 | |

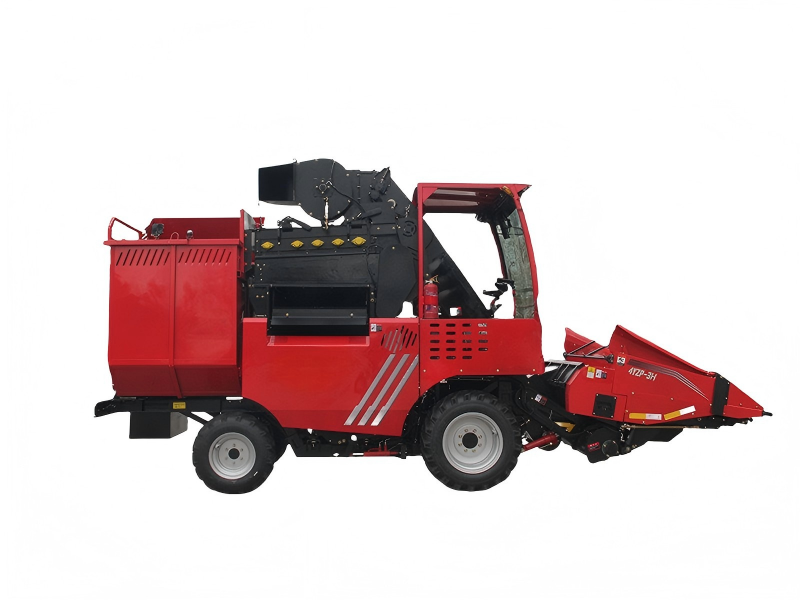

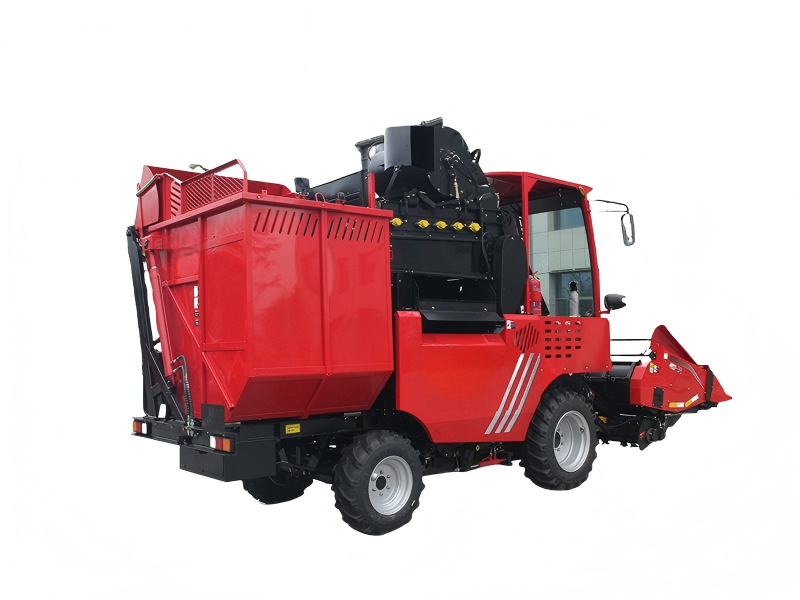

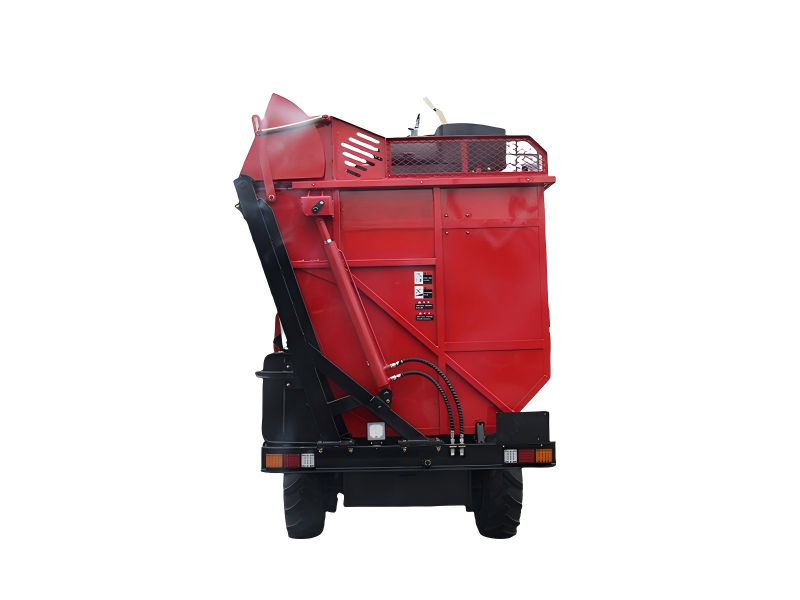

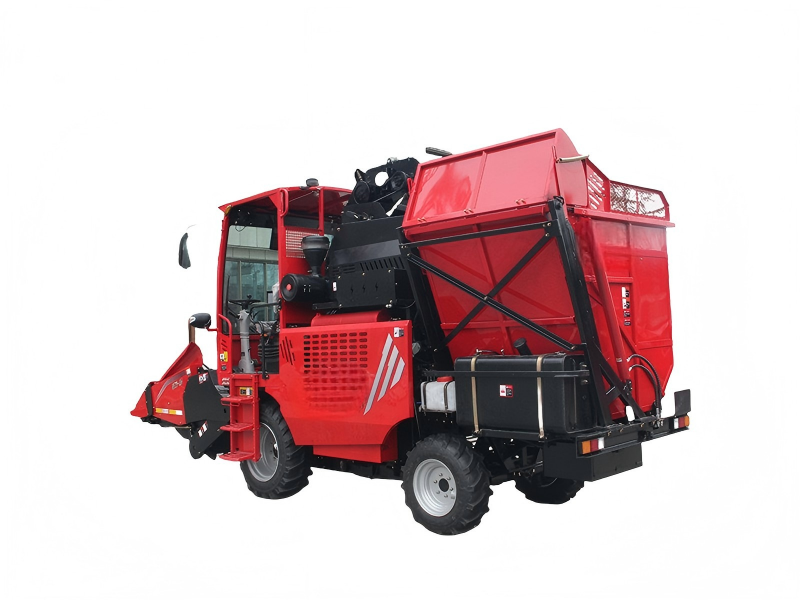

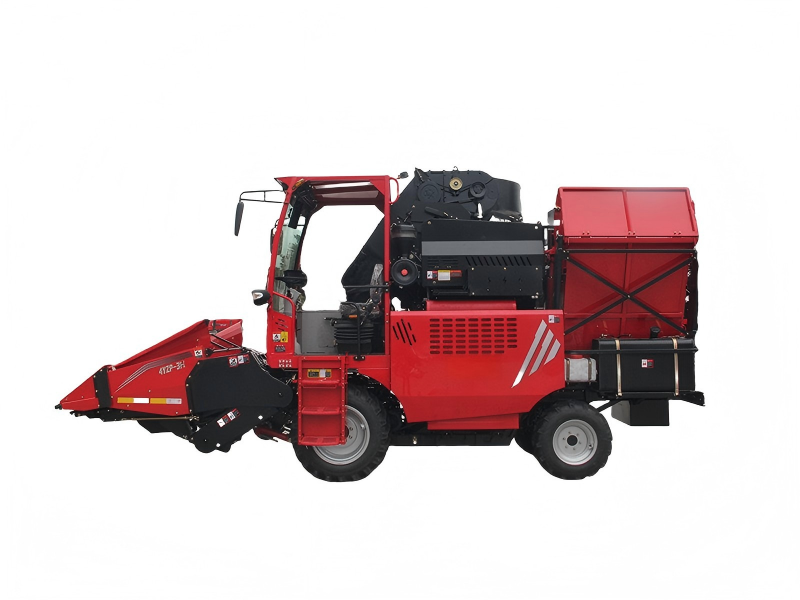

| Image: image: |     | |||
| Configuration Description: Description of configuration: | 4YZP-3H（2025PZ1）120 horsepower four-wheel drive, plate-type non-parallel header, row spacing 520, equipped with independent lifting 1380 front powder, equipped with rear row miscellaneous suction fan, solenoid valve, one-lever operation, HST hydraulic walking, 12-roller flat roll peeling machine, hydraulic main clutch, centralized oil injection, automatic lubrication 4YZP-3H (2025PZ1) up to 120 HP, four-wheel drive, plate type nonparallel header, row pitch 520, equipped with independent lifting 1380 front powder, equipped with rear row miscellaneous suction fan, solenoid valve, one-rod operation, HST hydraulic walking, 12-roller flat roll peeling machine, hydraulic main clutch, centralized oil injection and automatic lubrication | 4YZP-3H（2025PZ2）120 horsepower National IV emission standard, four-wheel drive, plate-type non-parallel header, row spacing 600, equipped with independent lifting 1540 front powder, equipped with rear row miscellaneous suction fan, solenoid valve, one-lever operation, HST hydraulic walking, 12-roller flat roll peeling machine, hydraulic main clutch, centralized oil injection, automatic lubrication 4YZP-3H (2025PZ2) four up to 120 HP Guosi, four-wheel drive, plate-type non-parallel header, row pitch of 600, equipped with independent lifting 1540 front powder, equipped with rear row miscellaneous suction fan, solenoid valve, one-rod operation, HST hydraulic walking, 12-roller flat roll peeling machine, hydraulic main clutch, centralized oil injection and automatic lubrication | ||
| Product Features Product Features: | The "Jindaifeng" 4YZP-3H self-propelled corn harvester has a compact structure and a small turning radius; it is flexible and maneuverable for turning and field changes, suitable for operation in small plots and complex terrains (such as mountains and hills). The new non-parallel roller header is suitable for corn of different maturity periods and has a wide range of adaptability. It is equipped with a front chopping device, which has a good straw crushing effect and a good returning effect. It adopts a reinforced gearbox and a closed side reducer, which is suitable for complex working conditions. The walking system is equipped with HST hydraulic transmission, and the operating speed can be adjusted according to different plots. GOLD Dafeng 4YZP-3HType self-propelled corn harvester with compact mechanism and small turning radius; Turning around is flexible and suitable for small fields and complex terrain (e.g. mountainous, hilly). The new non-row roller header is applicable to different maturity periods of corn, with a wide range of adaptability. It is equipped with a front chopping device, with good straw smashing effect and good field returning effect. The reinforced gearbox and enclosed side reducer are adopted, which are suitable for complex working conditions. The traveling system is equipped with HST hydraulic transmission, and the operation speed can be adjusted according to different plots. | |||
