4YZP-3GC
| Model | 4YZP-3GC | ||
| Structural type： | / | wheel type, ear picking, peeling, straw returning | |
| Dimension (L×W×H)： | mm | 6600×2350×3400 | |
| Mass of complete machine： | kg | 6700 | |
| Header | Header type | / | horizontal type |
| Number of operating lines (number of channels) | 行 | 3 | |
| row pitch | mm | 600 | |
| Available row distance： | mm | 550-750 | |
| Working breadth | mm | 1900 | |
| Type of ear picking mechanism | / | Ear picking roller type | |
| Number of ear picking rollers | 件 | 6 | |
| lift conveyer | Layout of ear elevator | / | Center placed |
| Structural type of ear elevator | / | Chain scraper type | |
| Engine | Model | / | 200GIII |
| Type | / | four-cylinder, in-line, four-stroke, high-pressure common rail | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 200HP/147KW | |
| Rated speed | r/min | 2200 | |
| Peeler | Type of stripping mechanism | / | High-low roller and rubber roller |
| Number of stripping rollers | 个 | 16 | |
| Field returning machine | Type | / | 甩刀式 Swing blade type |
| Location of straw crushing and returning mechanism | / | Between front and rear tires | |
| Working Width of Straw Crushing and Returning Mechanism | mm | 1800 | |
| Grain unloading mode： | / | Hydraulic rollover type | |
| Grain recycling box form： | / | 抽拉式Pull type | |
| Type of cab： | / | Luxury air-conditioned cab | |
| Type of transmission mechanism： | / | Mechanical transmission+hydrostatic stepless transmission | |
| Driving Type： | / | 两驱Two drive system | |
| Mini clearance： | mm | 285 | |
| Working speed： | km/h | 2-6 | |
| Drive wheel track： | mm | 1635 | |
| Guide wheel track： | mm | 1430 | |
| wheel base： | mm | 2760 | |
| Drive wheel tire specifications： | / | 15.5_80-24-16PR-R-1 | |
| Specification of guide wheel tire： | / | 10.0_75-15.3 Off road grain (12 levels) | |
| Productivity： | hm²/h | 0.2～0.55 | |
| Grain tank： | m³ | 2.3 | |
| fuel tank capacity： | L | 220 | |

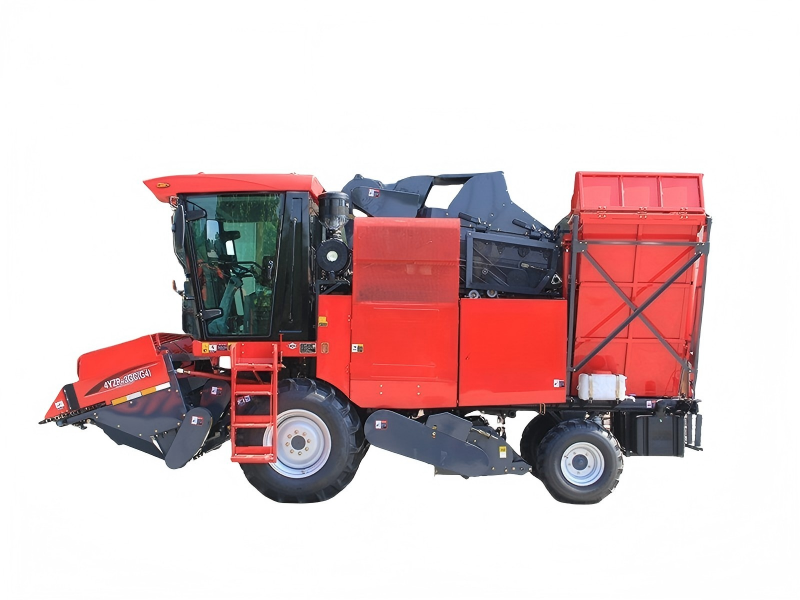

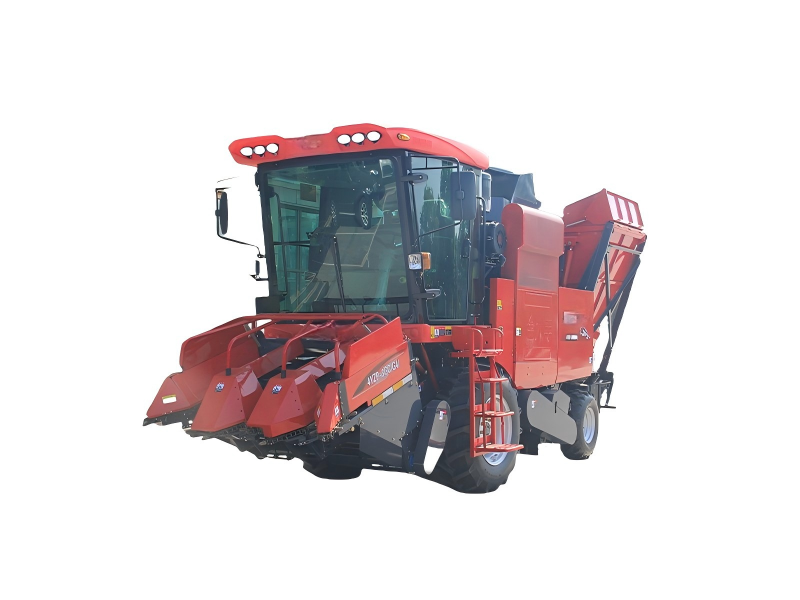

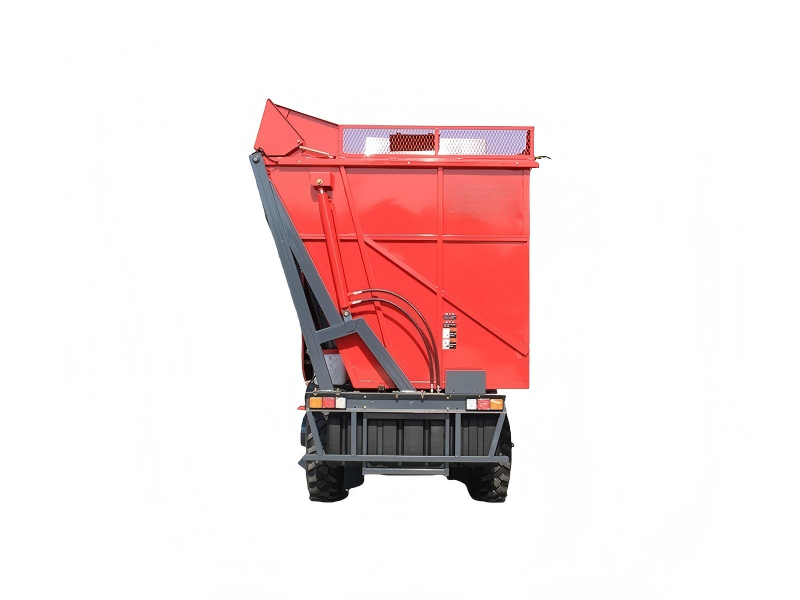

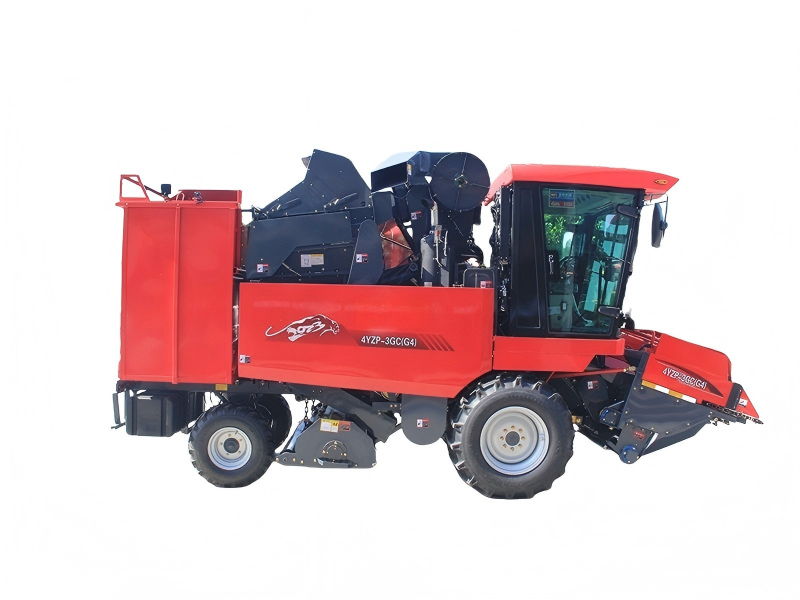

| 图片： image： |    | ||
| Configuration Description: Description of configuration: | Prince roll header, row spacing 600mm, Yuchai 200HP engine, front crushing, center-mounted 1800mm tiller, solenoid valve, single-lever operation, one pump one motor hydraulic drive, front and rear brakes, high and low roll peeler, pull-out grain tank, enclosed cab with metal control box, reversing camera, full tank indicator, chaff blower, hydraulic main clutch, PTO, Beidou positioning, and air conditioning. Prince roll header, row spacing of 600, Yuchai 200HP, front crushing, center-mounted Huitian 1800, solenoid valve, one lever operation, one pump, one motor, hydraulic walking, front brake, rear brake, high and low roll peeling machine, pull-type grain box, closed floor cab, metal plate control box, reversing video, full warehouse video, equipped with exhaust fan, hydraulic main clutch, power output, Beidou positioning, and air conditioning. | ||
| Product Features Product Features: | The GOLD Dafeng 4YZP-3GC self-propelled corn harvester features a compact structure and small turning radius, allowing for flexible maneuvering and turning. Its new non-walking roller header is suitable for corn at various maturity stages, offering wide adaptability. The new enclosed luxury air-conditioned cab, suspended seat, and multi-function single-lever control panel provide a comfortable driving experience. The return-to-field mechanism automatically rises when shifting to reverse, enhancing safety. GOLD Dafeng 4YZP-3GC self-propelled corn harvester has compact mechanism and small turning radius; The turnaround is flexible and flexible, and the new non-walking roller header is applicable to different maturity periods of corn, with a wide range of adaptability. Newly-enclosed luxury air conditioning cab, suspended seat, multi-function console one-lever operation, more comfortable driving; Shifting to the reverse gear will automatically lift the returning machine, making driving safer. | ||
| 1. High efficiency: 200HP engine, strong power, harvesting 5-9 mu per hour; 2. High strength: Chassis frame uses 16Mn steel, impact and bump resistant; 3. Highly maneuverable: 6.6m short body, small turning radius, high work efficiency; 4. Ultra comfortable: New enclosed luxury air-conditioned cab, suspended seat, multi-function single-lever control panel, more comfortable driving; 5. Strong adaptability: 15.5/80-24 large drive tires, 1.63m front wheel track, good stability, strong load-bearing capacity, strong anti-rutting capability, no slippage after rain; 6. Stable performance: Self-made reinforced D4.7 transmission + enclosed side reducer, suitable for complex working conditions. 1. High efficiency: 200 HP engine, strong power, 5-9 mu per hour; 2. High-strength: chassis frame adopts 16 manganese profile, which is resistant to bumping and impact; 3. Super flexible: 6.6m short body, small turning radius and high work efficiency; 4. Ultra comfortable: new enclosed luxury air conditioning cab, suspended seat, multi-function console one-lever operation, more comfortable driving; 5. Strong adaptability: 15.5/80-24 large drive tire, 1 M front wheel track, good stability, strong bearing capacity, strong anti-collapse capacity, no slipping after raining; 6. Stable performance: self-made reinforced D4.7 transmission+closed side reducer, suitable for complex working conditions. | |||
