4YZP-3FG
| Model | 4YZP-3FG | ||
| Structural Type Structural type | / | Wheel type, ear picking, peeling, straw returning wheel type, ear picking, peeling, straw returning | |
| Dimension (L×W×H) | mm | 7100×2000×3400 | |
| Mass of complete machine | kg | 7380 | |
| Header Header | Header type | / | horizontal type |
| Number of operating lines (number of channels) | row | 3 | |
| row pitch | mm | 600 | |
| Available row distance： | mm | 550-750 | |
| Working breadth | mm | 1900 | |
| Type of ear picking mechanism | / | Ear picking plate Ear picking plate | |
| Number of ear picking rollers | pcs | 6 | |
| lift conveyer lift conveyer | Layout of ear elevator | / | Center placed Center placed |
| Structural type of ear elevator | / | Chain scraper type Chain scraper type | |
| Engine Engine | Model | / | 200GIII |
| Type | / | four-cylinder, in-line, four-stroke, high-pressure common rail four-cylinder, in-line, four-stroke, high-pressure common rail | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 200HP/147KW | |
| Rated speed | r/min | 2200 | |
| Peeler Peeler | Type of stripping mechanism | / | High-low roller and rubber roller High-low roller and rubber roller |
| Number of stripping rollers | pcs | 16 | |
| Field returning machine Field returning machine | Type | / | Swing blade type Swing blade type |
| Location of straw crushing and returning mechanism Location of straw crushing and returning mechanism | / | Between front and rear tires Between front and rear tires | |
| Working Width of Straw Crushing and Returning Mechanism Working Width of Straw Crushing and Returning Mechanism | mm | 1850 | |
| Grain unloading mode： | Hydraulic rollover type | ||
| Grain recycling box form： | Pull type | ||
| Type of cab： | / | Luxury air-conditioned cab Luxury air-conditioned cab | |
| Type of transmission mechanism： Type of transmission mechanism： | / | Mechanical transmission+hydrostatic stepless transmission Mechanical transmission+hydrostatic stepless transmission | |
| Driving Type： | / | Two drive system | |
| Mini clearance： | mm | 285 | |
| Working speed： | km/h | 2-6 | |
| Drive wheel track： | mm | 1635 | |
| Guide wheel track： | mm | 1430 | |
| wheel base： | mm | 2760 | |
| Drive wheel tire specifications： Drive wheel tire specifications： | / | 15.5_80-24-16PR-R-1 | |
| Specification of guide wheel tire： Specification of guide wheel tire： | / | 10.0_75-15.3越野纹（12层级） Off road grain (12 levels) | |
| Productivity： | hm²/h | 0.2～0.55 | |
| Grain tank： | m³ | 2.3 | |
| fuel tank capacity： | L | 220 | |

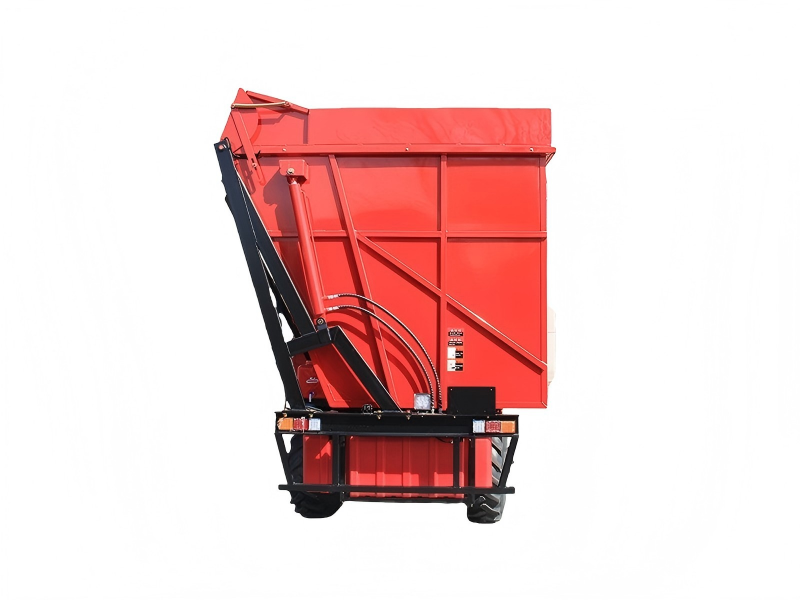

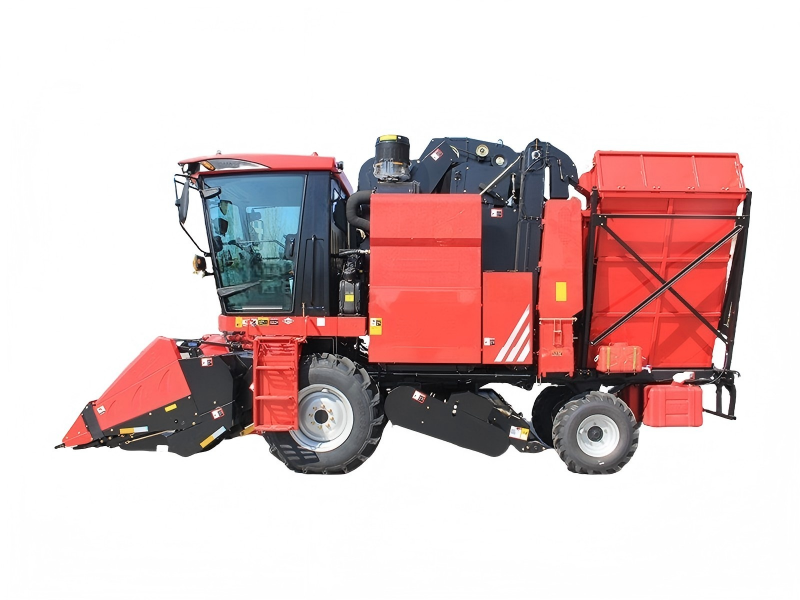

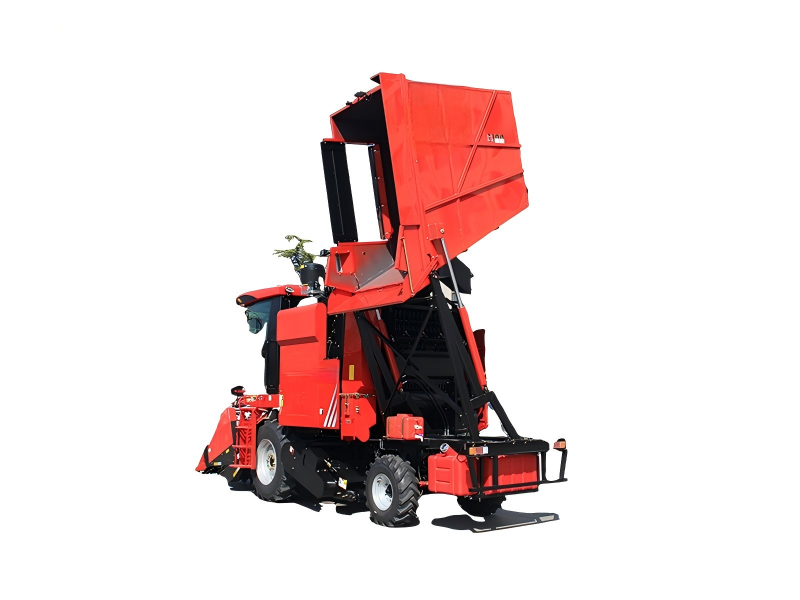

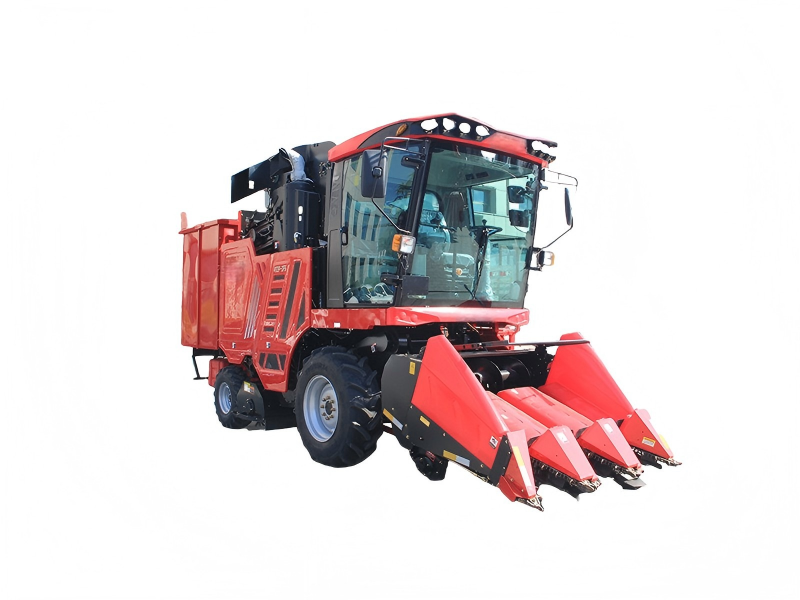

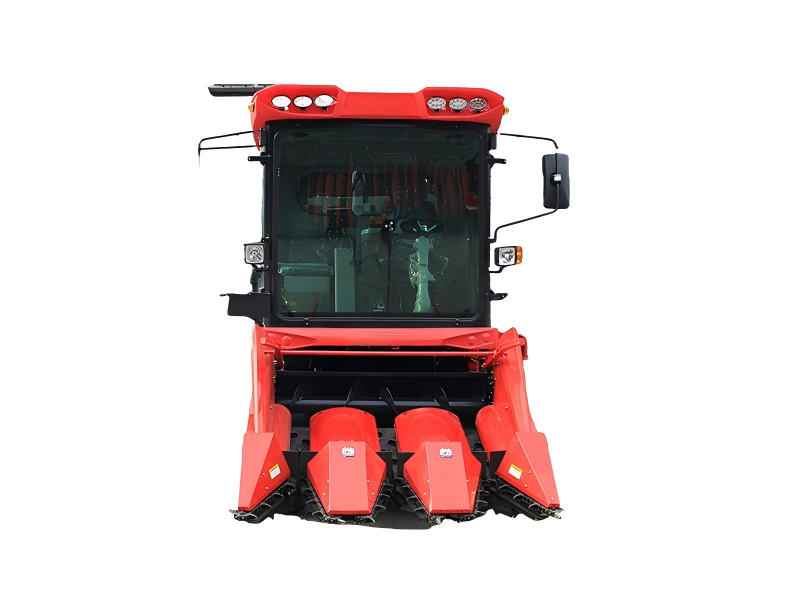

| image： image： |    | ||
| Configuration Description: Description of configuration: | Plate-type header, row spacing 600, elevator width 560, Yuchai 200 horsepower, front tilling, middle tilling 1850, solenoid valve, single-lever operation, one pump and one motor hydraulic walking, front brake, rear brake, high and low roller peeling machine, pull-out grain tank, enclosed cab, suspended control box, reversing image, full bin image, equipped with double-row miscellaneous suction fan, hydraulic main clutch, power take-off, Beidou positioning, equipped with air conditioning. Plate-type header, row pitch 600, elevator width 560, Yuchai 200HP, front return field, middle return field 1850, solenoid valve, one lever operation, one pump and one motor hydraulic walking, front brake, rear brake, high and low roll peeling machine, pull-out grain box, enclosed floor cab, suspended control box, reversing video, full warehouse video, equipped with double row miscellaneous suction fan, hydraulic main clutch, power output, Beidou positioning, equipped with air conditioner. | ||
| Product Features Product Features: | The "Jindaifeng" 4YZP-3FG self-propelled corn harvester has a compact structure and a small turning radius; it is flexible and maneuverable in turning and field changes, and the new non-walking roller header is suitable for corn of different maturity periods and has a wide range of adaptability. The new enclosed luxury air-conditioned cab, suspended seat, and multi-function console with single-lever operation make driving more comfortable; when shifting to reverse, the tilling machine automatically rises, making driving safer. GOLD Dafeng 4YZP-3FG self-propelled corn harvester has compact mechanism and small turning radius; The turnaround is flexible and flexible, and the new non-walking roller header is applicable to different maturity periods of corn, with a wide range of adaptability. Newly-enclosed luxury air conditioning cab, suspended seat, multi-function console one-lever operation, more comfortable driving; Shifting to the reverse gear will automatically lift the returning machine, making driving safer. | ||
| 1. High efficiency: 200 horsepower engine, strong power, can harvest 5-9 mu per hour; 2. High strength: The chassis frame adopts 16 manganese profile, which is resistant to bumps and impacts; 3. Super flexible: 6.6-meter short body, small turning radius, high work efficiency; 4. Ultra comfortable: New enclosed luxury air-conditioned cab, suspended seat, multi-function console single-lever operation, more comfortable driving; 5. Strong adaptability: 15.5/80-24 large drive tires, 1.63-meter front wheel track, good stability, strong load-bearing capacity, strong anti-sinking capacity, no slippage after rain; 6. Stable performance: Self-made reinforced D4.7 gearbox + enclosed side reducer, suitable for complex working conditions. 1. High efficiency: 200 HP engine, strong power, 5-9 mu per hour; 2. High-strength: chassis frame adopts 16 manganese profile, which is resistant to bumping and impact; 3. Super flexible: 6.6m short body, small turning radius and high work efficiency; 4. Ultra comfortable: new enclosed luxury air conditioning cab, suspended seat, multi-function console one-lever operation, more comfortable driving; 5. Strong adaptability: 15.5/80-24 large drive tire, 1 M front wheel track, good stability, strong bearing capacity, strong anti-collapse capacity, no slipping after raining; 6. Stable performance: self-made reinforced D4.7 transmission+closed side reducer, suitable for complex working conditions. | |||
