Rice Harvester
| Model | Rice combine 4LZ-7 | ||
| Dimension (L×W×H) | mm | 5900×2640×2940 | |
| Min. operating weight | kg | 3935 | |
| Track gauge of crawler | mm | 1250 | |
| Feeding speed | kg/s | 7 | |
| Productivity | hm²/h | 0.19ï½1.0 | |
| Working speed | km/h | 0.9ï½6.5 | |
| Mini clearance | mm | 340 | |
| Grain tank | m³ | 1.6 | |
| fuel tank capacity | L | 140 | |
| Cutting | Cutting width | mm | 2400 |
| Cutting table agitator type | / | Screw pusher type | |
| Type of reel | / | Eccentric toothed type | |
| Reel lever lever | / | 5 | |
| Pulling wheel diameter | mm | Φ900 | |
| Tuogu Room | Number of threshing drums Number of threshing drums | / | 1 |
| Main threshing drum type Main threshing drum type | / | Longitudinal axial flow rod tooth type Longitudinal axial flow rod tooth type | |
| Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2200 | |
| Concave plate sieve type | / | Grid format | |
| Detoxification method | / | Plate-tooth blade type | |
| Engine | Model | / | 110HP-GIII |
| Type | / | Turbocharging+mechanical injection Turbocharging+mechanical injection | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 110HP/80.1kw | |
| Rated speed | r/min | 2400 | |
| Fuel consumption per unit operation volume Fuel consumption per unit operation volume | kg/hm2 | ≤35 | |
| Unloading system Unloading system | Unloading height of grain | mm | 0.8-4000 |
| Grain unloading mode | / | 360°Multi-directional grain unloading 360°Multi-directional grain unloading | |
| Rubber Track | / | 550x90Px56 | |
| Chassis Wheels | / | 6+1 with scraper | |
| Gearbox | / | 95 | |
| HST | / | KANZAKI 52cc | |
| Monitoring and Video | / | Yes | |
| USB Charges | / | Yes | |
| Valve of Hydraulic on Header | / | Yes | |
| Working Area Recorder | / | Yes | |
| Alarm system | / | Grain tank alarm, coolant alarm, battery alarm, engine oil alarm and blockage alarm Grain tank alarm, coolant alarm, battery alarm, engine oil alarm and blockage alarm | |
| Pilothouse | / | Luxury air-conditioned cab | |

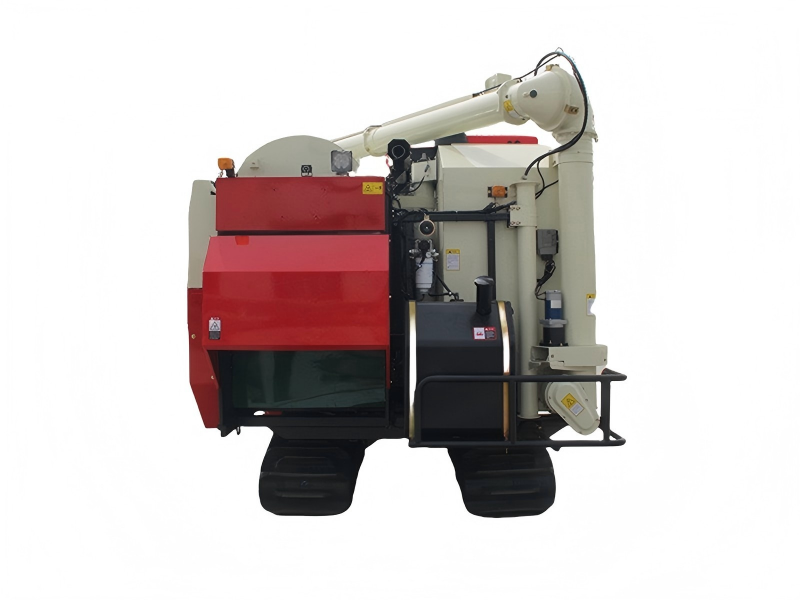

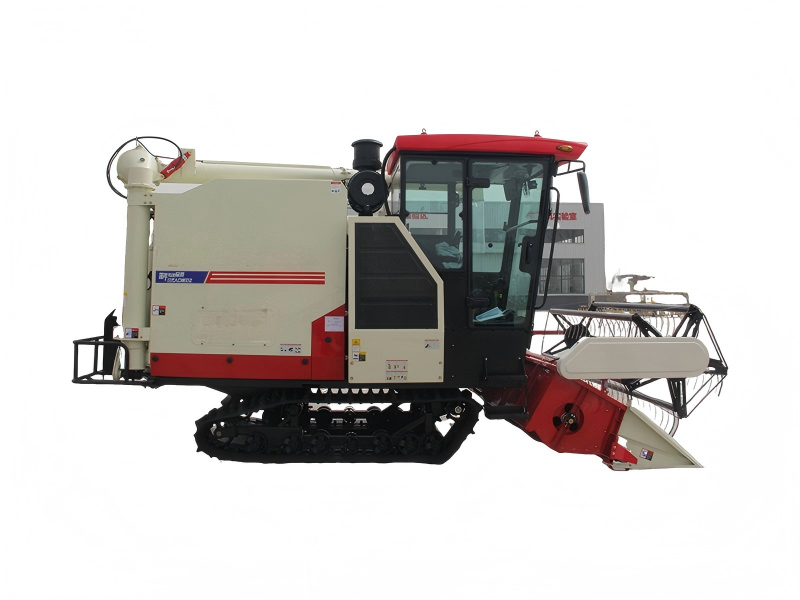

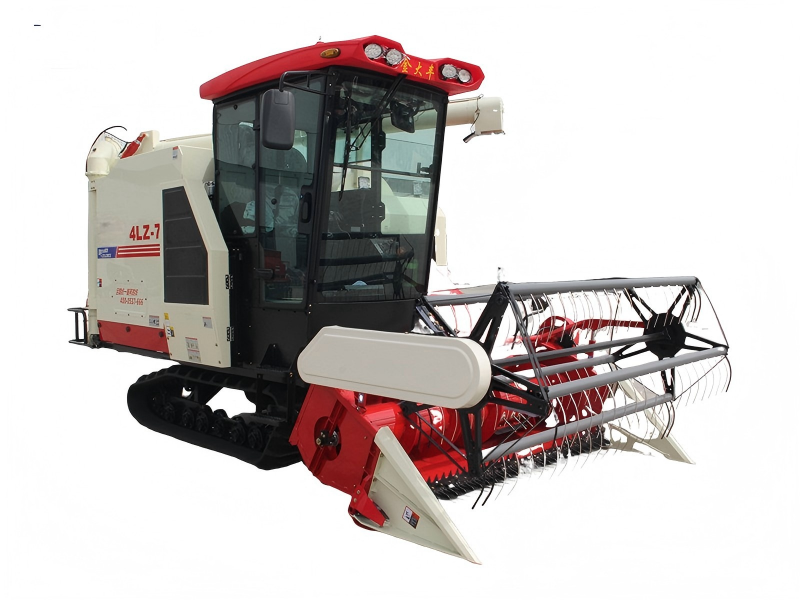

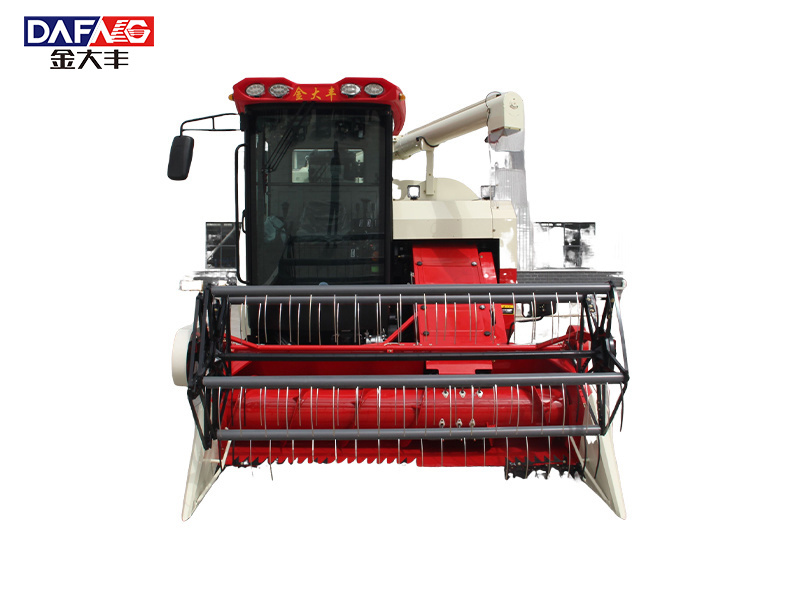

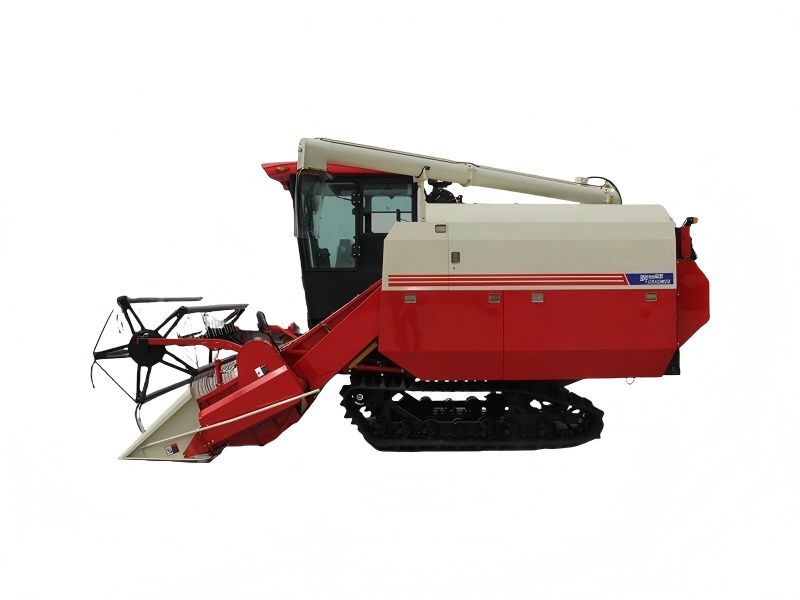

| Image: Image: |    | ||
| Description of configuration: Description of configuration: | Model 2025, luxury air conditioning cab, 2400 header, with USB interface, Yuchai 110HP G3, 550 wide 56 section crawler, without straw chopper subassembly Model 2025, luxury air conditioning cab, 2400 header, with USB interface, Yuchai 110HP G3, 550 wide 56 section crawler, without straw chopper subassembly | ||
| Product Featuresï¼ Product Featuresï¼ | 1.Optional plate-type divider and "rat cage" divider, wide range of crop adaptability, especially for lodging crops, reducing header losses; 2.The reel tooth tube is equipped with a protective cover to effectively prevent grass entanglement; 3. Optimized header lifting and slewing design, matched with an extended bridge, solving both low-cutting (for lodged crops) and high-point passability issues; the lowest point of the header guard is 40 mm below ground level, and the highest point is 1000 mm above ground level. 4. Optimized bridge feeding inlet design, using floating wheels for adjustable feeding and improved conveying throughput. 5. Threshing chamber feeding inlet is made of arc-shaped, thickened stainless steel for improved rigidity, strength, and wear resistance. 6. Matched with a high-efficiency threshing, cleaning, and separation system; the threshing drum is 2.2 meters long, using a new cleaning fan and adjustable-angle fish-scale cleaning sieve for high crop processing capacity, solving issues of poor threshing feeding and high cleaning losses. 7. High ground clearance chassis, with a minimum clearance of 340 mm for improved anti-sinking capability; optional tracks for enhanced paddy field passability and adaptability. 8. Matched with a renowned, Tier 3 horsepower engine for strong power, high operating efficiency, and low fuel consumption. 9. Uses original imported walking hydraulic transmission, matched with a 95 gearbox for fast speed, flexible steering, and good handling. 10. New control panel, aesthetically pleasing and comfortable to operate, designed with ergonomics in mind; waterproof electrical components for long service life, and recessed start switch to prevent accidental shutdowns. 11. Optional straw post-processing methods for wide regional adaptability. 12. Optional rapeseed, corn, and millet harvesting attachments for versatile use. 1. Optional plate type divider and "squirrel cage" divider, wide crop adaptability, especially lodging crops, reduce header loss; 2. The elastic tooth tube of the wheel is equipped with a protective cover to effectively prevent grass entanglement; 3. Optimize the lifting and slewing design of the header and match the lengthened bridge, which not only solves the problem of low cutting (lodging crop) of the header, but also solves the problem of passability at the high point of the header; The tip of the header guard is 40 mm below the horizontal ground, and the high point is 1000 mm from the horizontal ground. 4. Optimized design of the feeding inlet of the bridge, using floating wheels, which can be adjusted freely according to the feeding amount to improve the conveying throughput; 5. The feeding inlet of the threshing room is made of arc-shaped thickened stainless steel plate, which improves its rigidity, strength and wear resistance; 6. Matched with high-efficiency threshing and cleaning separation system, the threshing drum is 2.2 meters long, and the new cleaning fan and adjustable angle fish scale cleaning screen are adopted, which has strong crop processing capacity, and the system solves the problems of poor threshing feeding and large cleaning loss; 7. High clearance chassis matching, the minimum ground clearance can reach 340mm, improve the anti-sinking ability, optional track, improve the passability and adaptability of paddy field; 8. Matching the famous horsepower national three engine, strong power, high operating efficiency and low fuel consumption; 9. Adopt original imported walking hydraulic transmission, matched with 95 gearbox, fast speed, flexible steering and good handling; 10. Brand new control panel, beautiful and generous, comfortable to operate, more in line with ergonomics; Waterproof electrical components, long service life, recessed start switch installation, to avoid accidental collision and flameout; 11. Choose two kinds of straw post-treatment methods, with wide regional adaptability; 12. Optional rapeseed, corn, millet harvesting device, strong adaptability, to achieve a multi-purpose machine. | ||
