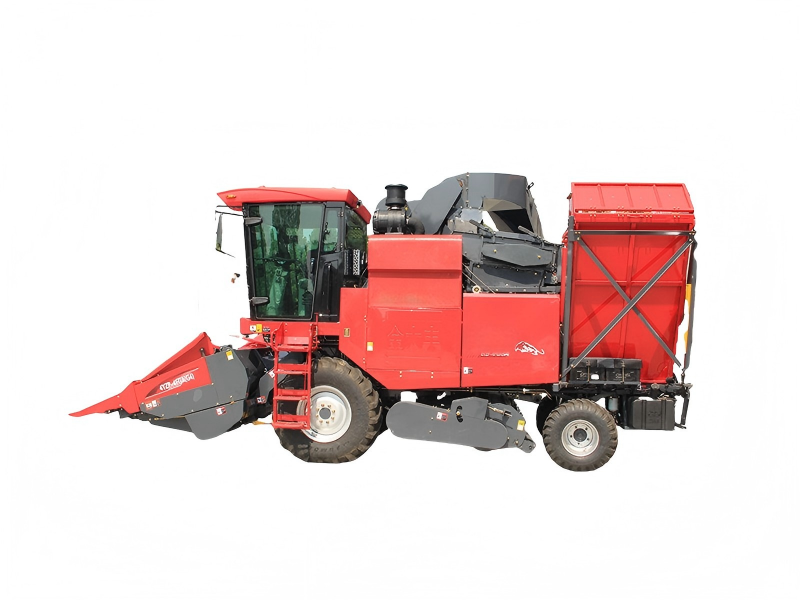

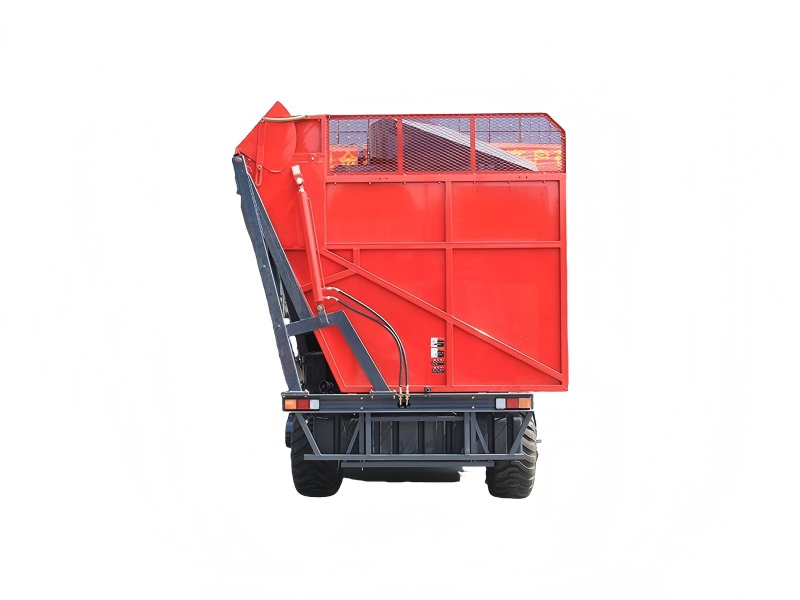

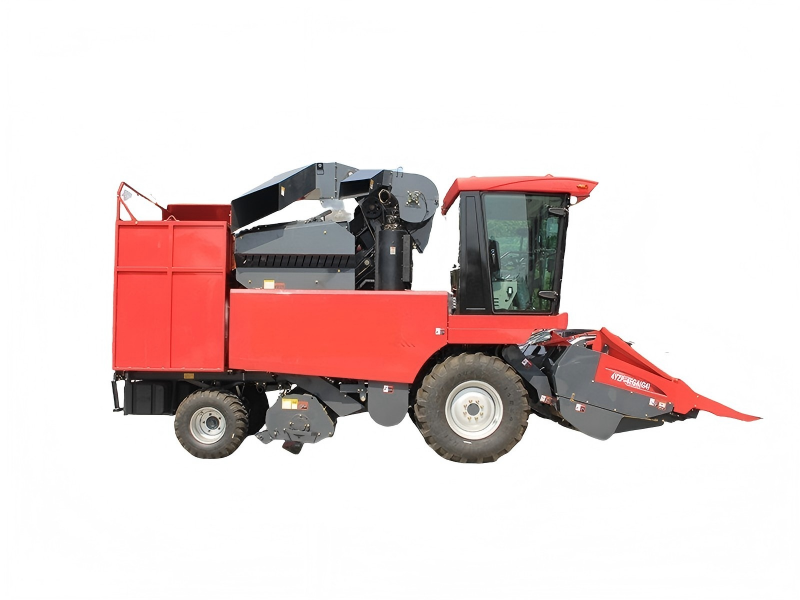

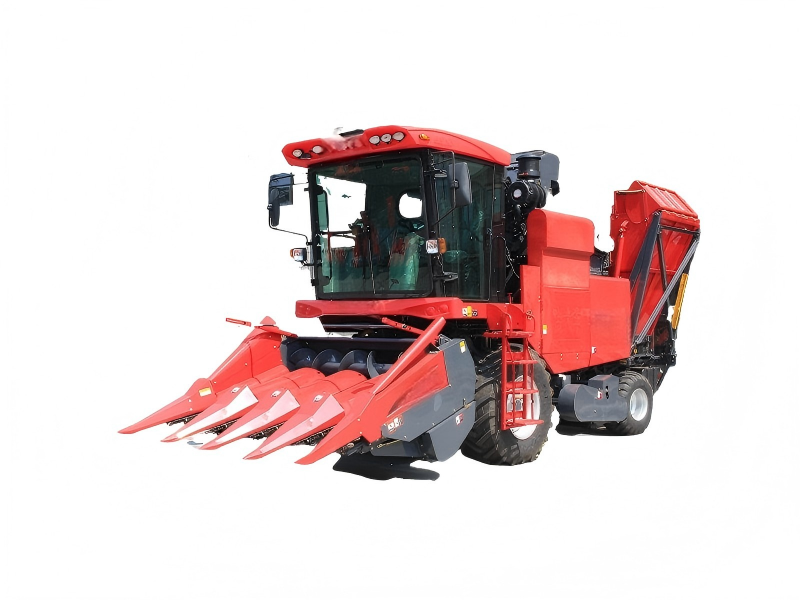

4YZP-4FGA
| Model | 4YZP-4FGA | ||
| Structural Type Structural type | / | Wheel type, ear picking, peeling, straw returning wheel type, ear picking, peeling, straw returning | |
| Dimension (L×W×H) | mm | 7310×2580×3490 | |
| Mass of complete machine | kg | 9000 | |
| Header Header | Header type | / | horizontal type |
| Number of operating lines (number of channels) | Lines | 4 | |
| row pitch | mm | 560 | |
| Working breadth | mm | 2340 | |
| Type of ear picking mechanism | / | Picking Plate Type Picking Plate | |
| Number of ear picking rollers | Pieces | 8 | |
| lift conveyer lift conveyer | Layout of ear elevator | / | Center placed Center placed |
| Structural type of ear elevator | / | Chain scraper type Chain scraper type | |
| Engine Engine | Model | / | 240GIV |
| Type | / | Six-cylinder, in-line, four-stroke, high-pressure common rail Six-cylinder, in-line, four-stroke, high-pressure common rail | |
| Qty of cylinders | / | 6 | |
| Rated power | HP/KW | 240HP/176.5KW | |
| Rated speed | r/min | 2200 | |
| Peeler Peeler | Type of stripping mechanism | / | Rubber roller Rubber roller |
| Number of stripping rollers | Pieces | 20 | |
| Field returning machine Field returning machine | Type | / | Swing blade type Swing blade type |
| Location of straw crushing and returning mechanism Location of straw crushing and returning mechanism | / | Between front and rear tires Between front and rear tires | |
| Working Width of Straw Crushing and Returning Mechanism Working Width of Straw Crushing and Returning Mechanism | mm | 2250 | |
| Type of cab | / | Luxury air-conditioned cab Luxury air-conditioned cab | |
| Type of transmission mechanismï¼ Type of transmission mechanismï¼ | / | Mechanical transmission+hydrostatic stepless transmission Mechanical transmission+hydrostatic stepless transmission | |
| Driving Typeï¼ | / | Two drive system | |
| Mini clearanceï¼ | mm | 240 | |
| Working speedï¼ | km/h | 2-6 | |
| Drive wheel trackï¼ | mm | 1860 | |
| Guide wheel trackï¼ | mm | 1700 | |
| wheel baseï¼ | mm | 3000 | |
| Drive wheel tire specificationsï¼ Drive wheel tire specificationsï¼ | / | Radial tubeless tyre 15R24 149A8 R-1 Radial tubeless tyre 15R24 149A8 R-1 | |
| Specification of guide wheel tireï¼ Specification of guide wheel tireï¼ | / | Diagonal Tubeless Tire 400-60-15.5-16PR-I-3E Diagonal Tubeless Tire 400-60-15.5-16PR-I-3E | |
| Productivityï¼ | hm²/h | 0.4-0.7 | |
| Grain tankï¼ | m³ | 3.2 | |
| fuel tank capacityï¼ | L | 280 | |
| imageï¼ imageï¼ |    | ||
| Description of configurationï¼ Description of configurationï¼ | Six-edged plate stem pulling roller, 560 row spacing, Cummins 240HP National IV six-cylinder engine, front chopping, 2250 central tiller, solenoid valve, single-lever operation, one pump and one motor hydraulic drive, front brakes, rear brakes, 20-roller high and low roller peeler, luxury cab, sheet metal control box, bin full image, reversing image, single auger grain unloading, equipped with chaff suction fan, hydraulic main clutch, power take-off, Beidou positioning, and air conditioning. Six-edge plate pull stem roller, row spacing 560, Cummins 240HP national four-cylinder and six-cylinder engine, front chopping, middle field returning machine 2250, solenoid valve, one lever operation, one pump and one motor hydraulic walking, front brake, rear brake, 20-roll high and low roll peeling machine, luxury cab, metal plate control box, full warehouse image, reversing image, single auger grains unloading, equipped with exhaust fan, hydraulic main clutch, power output, Beidou positioning and air conditioning. | ||
| Product features Product Features: | The "Jindaifeng" 4YZP-4FGA self-propelled corn harvester features a compact structure and a small turning radius; hydraulic drive, single-lever operation, and flexible turning. The new non-row roller header is suitable for corn at different maturity stages, with a wide range of adaptability. GOLD Dafeng "4YZP-4FGA self-propelled corn harvester has compact mechanism and small turning radius;Hydraulic walking, one-lever operation, flexible turnaround.The new non-row roller header is applicable to different maturity periods of corn, with a wide range of adaptability. | ||
| 1. Powerful Power: The Cummins 240HP engine, using advanced American technology, is economical and durable, with tight engine clearance, low vibration, and low noise! 2. Comfortable Operation: One pump and one motor hydraulic drive, original built-in air conditioning. Multi-function electronic control handle, column-type driving instrument displays driving data for easy reading by the driver. The tiller automatically rises when shifting to reverse, enhancing driving safety; 3. Super Strong Chassis: The frame uses 16-type profiles and a triangular support beam structure, resistant to bumps and impacts. The drive wheels use radial tires for stronger grip. The widened guide wheels provide good anti-rutting performance. 4. High-Efficiency Operation: The new plate-type header features forced stem pulling, minimizing grain loss during feeding. Matched with an extended front tip, it can harvest lodged corn, and the reel angle is adjustable, suitable for a wide range of row spacing; the high-efficiency 20-roller peeler boasts a high peeling rate; 5. Convenient Maintenance: The transmission chain uses an automatic lubrication device, and the peeler and fan bearings use centralized oil injection, saving time and effort on maintenance. 6. Smart Technology: After scanning the QR code and registering on the mobile APP, you can connect to the harvester via mobile Bluetooth for intelligent control and troubleshooting. 1.Powerful power: Cummins 240 HP engine of American advanced technology is economical and durable, with tight engine clearance, small vibration and low noise! 2.Comfortable operation: one pump, one motor, hydraulic walking, original built-in air conditioner.Multi-function electronic control handle, column type driving instrument, display driving data, convenient for the driver to read. Shifting to the reverse gear will automatically lift the returning machine, making driving safer; 3. Super-strong chassis: the frame adopts 16 profiles and triangular support beam structure, which is resistant to bumping and impact.The drive wheel is equipped with radial tire with stronger grip. Widened guide wheel, with good anti-seffect. 4.High-efficiency operation: new plate header, forced stem pulling, small grain loss during feeding. With a long front tip, lodging corn can be harvested, and the reel angle can be adjusted, which is applicable to a wide range of row spacing; High-efficiency 20-roller stripping machine with high stripping rate; 5.Convenient maintenance: the transmission chain adopts the automatic lubrication device, and the stripping machine and fan bearings adopt the centralized oil injection method, which saves time and mind. 6.Smart technology: After scanning code and registering mobile APP, it can be interconnected with the harvester through mobile bluetooth for intelligent control and troubleshooting. | |||
