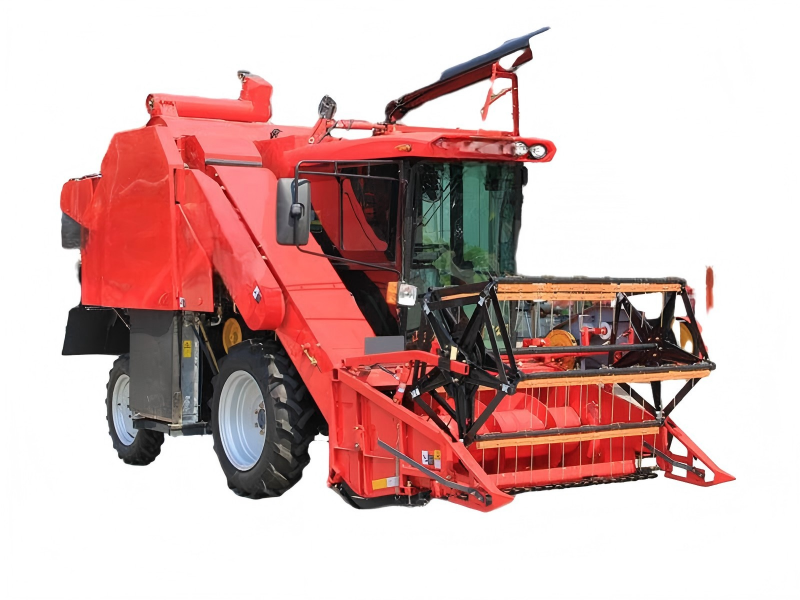

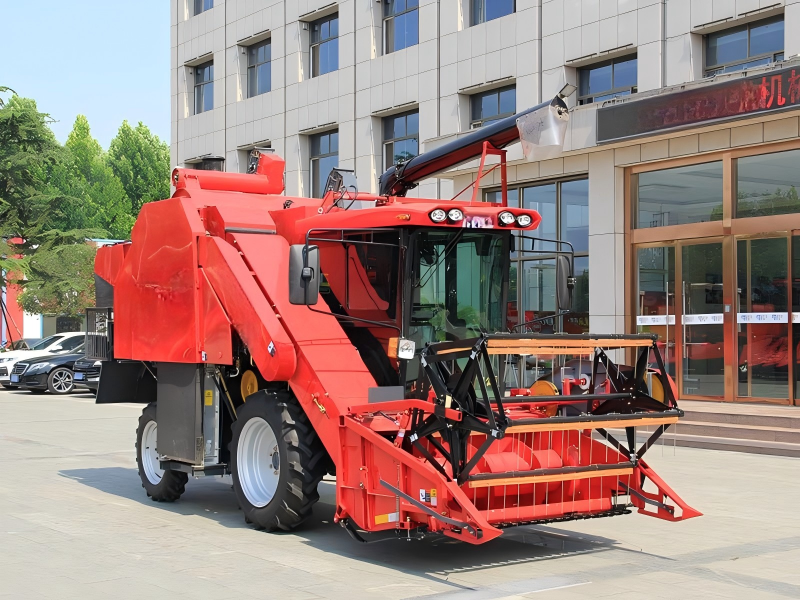

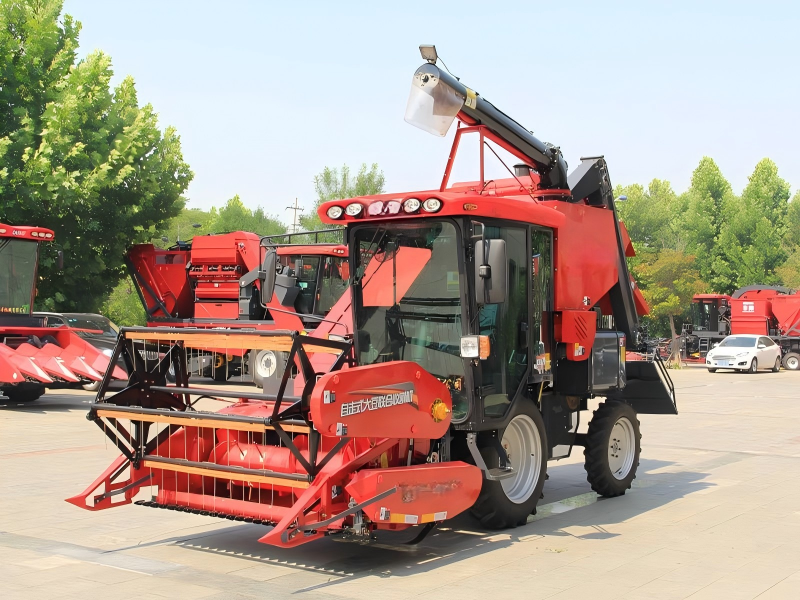

Self-propelled Soybean Combine Harvester

TECHNICAL PARAMETERS

No.	Project	Unit	Design value
1	Model name	/	4LZ-1.6 (1.6A) self-propelled soybean combine harvester
2	Engine power	kW	103
3	Overall dimensions of the machine (L×W×H)	mm	6400*2000*3300
4	Header width	mm	1600
5	Header type	/	Contoured floating header
6	Feeding volume	kg/s	1.6
7	Number of threshing drums	pcs	2
8	Main threshing drum type	/	Axial flow
9	Secondary threshing drum type	/	Cut flow
10	Main threshing drum size (Outer diameter×length)	mm	Φ476x1290
11	Auxiliary threshing drum size (Outer diameter×length)	mm	φ476x445
12	Grain unloading height	mm	3000
13	Wheelbase		2000
14	Drive mode		Four-wheel drive (1.6A is two-wheel drive)
15	Complete machine quality	kg	4050
16	Working speed	km/h	1.6-5
17	Operation hour productivity	h㎡/h	0.2-0.47
18	Fuel consumption per unit area	Kg/h㎡	≤35
19	Grain unloading method		Mechanical automatic grain unloading



PRODUCT DESCRIPTION

The 4LZ-1.6 (covering 4LZ-1.6A) self-propelled soybean combine harvester can complete the harvesting, threshing and separation, cleaning, grain collection, soybean straw and bean hull stacking and recovery of soybean crops in one go. This machine is a special combine harvester for soybeans, with low crushing rate, high cleanliness, no mud and grass stains, and excellent harvesting performance.

Equipped with 140 horsepower engine, strong power;

Front wheel 11.2-24, rear wheel 7.5-20, mechanical four-wheel drive (1.6A model is two-wheel drive), high ground clearance, good passing performance;

Closed cab, floating seat, hard-connected gear, comfortable operation;

The header adopts a contoured floating header, and the cutter can float and cut along with the terrain without leaking pods; the reel speed is infinitely adjustable to adapt to various yields of soybeans;

The large conveyor trough adopts a 38-pitch chain scraper structure for forced feeding;

The threshing mechanism adopts tangential flow + transverse axial flow threshing drum, and the residue is returned to the drum twice for threshing. The threshing is clean and there is no entrainment loss;

The cleaning screen adopts a double-layer fish scale screen with an adjustable opening angle, and the fan adopts a volute-type adjustable air volume fan to ensure clean cleaning;

The grain is unloaded at a high position, with a grain unloading height of up to 3 meters; a spiral blade is used to push the auger, so the soybeans are less broken.

As long as straw is used properly, it can increase income and be environmentally friendly. This machine is also thoughtfully equipped with a stacking and recycling device at the rear of the machine to collect soybean straw and bean hulls as forage to help users obtain higher profits.
