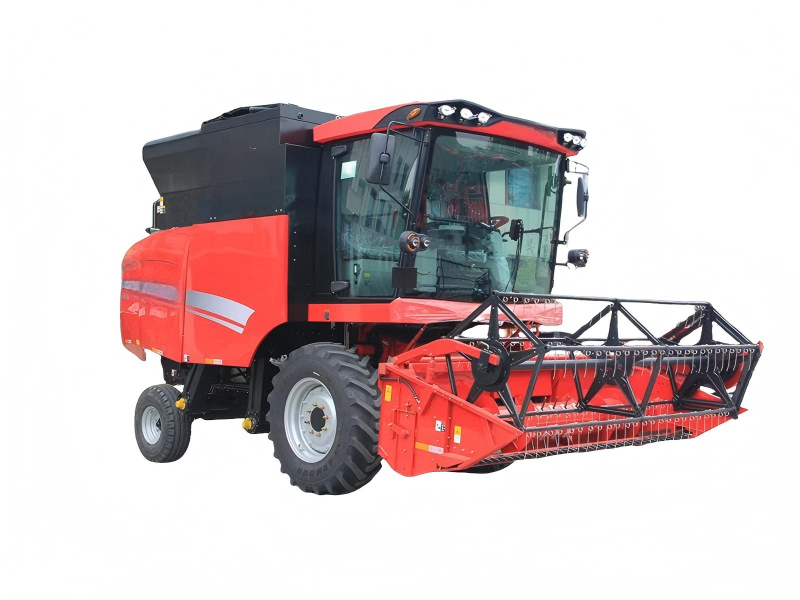

Self moving grain harvester

Horsepower		220HP
Cutting width (mm)		3000
Cab type		Regular
Grain tank(m³)		4.5（3.3+1.2）
Productivity(hm²/h)		0.4-1.0
Wheel base(mm)		2700
Mini clearance(mm)		310
Threshing drum size(mm)	Φ700×2690	Weight(kg )	7100
Drive type	Front: Hydraulic+Mechanical Drive Rear: None	Dimensions(L*W*H)(mm)	6970×3250×3550
Threshing pattern	Longitudinal axial flow
Usage: Can harvest rice and wheat; Optional rapeseed, corn, and millet harvesting devices		Packaging:
Product features: "Jindafeng" 4LZ-10 self-propelled grain harvester, using longitudinal axial flow drum threshing and separation technology, can harvest rice and wheat; Optional rapeseed, corn, and millet harvesting devices.



1. Cummins six cylinder 210 horsepower engine, 350L rolling fuel tank, long operating range!

2. The frame of the threshing room is made of 16 manganese material, which has high strength and is more durable!

3. The walking pump and motor are 90 pumps/80 motors, combined with a closed edge reduction box, providing powerful large displacement walking without fear of complex terrain. The harvesting speed is fast, and the transition speed can reach 40 kilometers per hour.

4. The widened tires (440/80-28 drive wheels, 12.5/80-15.3 guide wheels) have strong load-bearing capacity and do not slip in wet areas.

5. 100cm feeding inlet, 2.95-meter ultra long drum, smoother feeding and more thorough threshing.

6. Giant Energy Equipment: Hydraulic one key opening and closing automatic folding grain bin, with a basic grain bin volume of 3.3m ³, and an additional 1.2m ³ after opening and closing. The grain bin volume can reach up to 4.5m ³ and can hold 6300 kilograms of wheat.

7. Kirin arm: 2.5-4.5 meters adjustable hydraulic lifting unloading+one click swing back, more worry free and convenient.

8. Positive pressure air conditioning cab+dual display screen (pillar type instrument panel+video monitoring) for more comfortable operation.

9. The pull-out straw chopper can achieve quick switching between chopping and straw removal, making it convenient for more machine harvesting operations.

10. Can be replaced with corn grain and miscellaneous grain cutting heads, achieving multiple uses for one machine and increasing the operation time of the operator!
